Home Products > Motors with integrated Controller > Brushless DC motors with Motion controller > IBS057

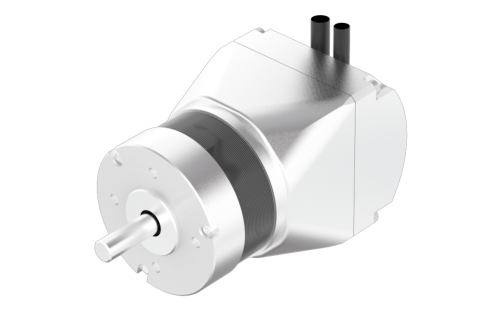

IBS057 0088NE1000 E-S402

Size 57 mm | Length (L) 123 mm | Interface EtherCAT | Rated Torque 0.22 Nm | Rated Power 88 Watt | Operating Voltage 24-36 Vdc

Product Code: IBS0570088NE1000E-S402

Technical Data

Download

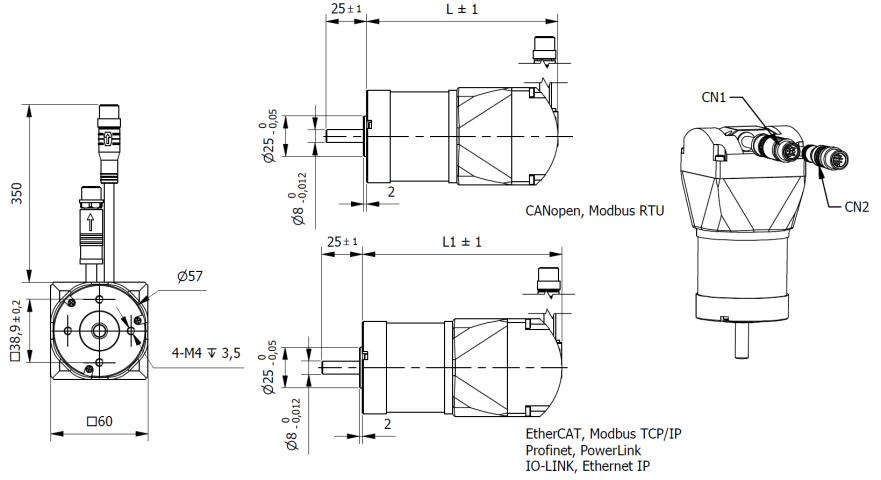

Dimensions

Software

Accessories

Size	57 mm	Length (L)	123 mm
Interface	EtherCAT	Rated Torque	0.22 Nm
Rated Power	88 Watt	Rated Current	3.7 A
Operating Voltage	24-36 Vdc	n° of Pole	4
Rated Voltage	36 Vdc	Rated Speed	4000 rpm
Max. Peak Torque	0.66 Nm	Torque Constant	0.06 Nm/A
Max. Peak Current	11 A	No-Load Current	<500 mA
Rotor Inertia	119 gcm²	Weight	1 Kg
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP20	Radial Play (460g load)	0.025 mm
Operating Temperature	+5°C to +40°C	Humidity	5% to 85% not condensing
Axial Play (4000g load)	0.025 mm	Max. Radial Force (20mm from flange)	75 N
Max. Axial Force	15 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Operating mode	Speed, Torque
Protective functions	Over current, over/under voltage, overheating, short circuit	Debug & configuration	Serial Interface
Encoder Type - Standard	Magnetic Incremental encoder	Digital Inputs	4 not isolated 5-24 Vdc PNP
Digital Outputs	2 not isolated 24 Vdc
