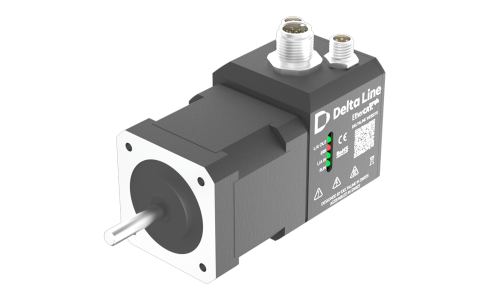

ISI042 0104NE100X C-S200

Size 42 mm | Length (L) 104 mm | Interface CANopen - programmable | Holding Torque 0.8 Nm | Current/Phase 1.5 A | Operating Voltage 12-30 Vdc

Product Code: ISI0420104NE100XC-S200

Technical Data

Download

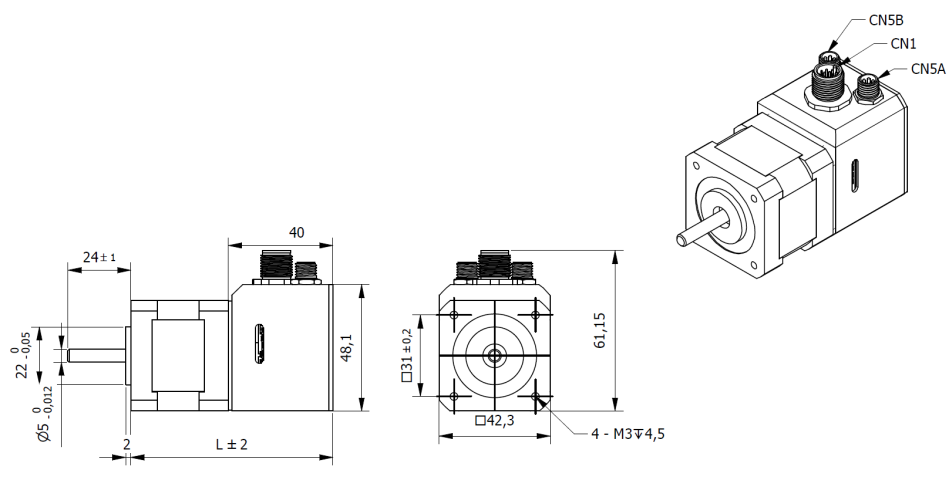

Dimensions

Software

Accessories

Size	42 mm	Length (L)	104 mm
Interface	CANopen - programmable	Holding Torque	0.8 Nm
Current/Phase	1.5 A	Operating Voltage	12-30 Vdc
Resistance/Phase	3.2 Ohm	Inductance/Phase	8 mH
Rotor Inertia	102 gcm²	Weight	0.61 Kg
Step Angle	1.8 °	Step Angle accuracy	±5 %
Protection Class	IP65	Operating Temperature	+5°C +40°C
Humidity	5% to 85% not condensing	Max. Temp. Rise (rated current, 2-phase on)	80 °C
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (20mm from flange)	28 N	Max. Axial Force	10 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating mode	Position, Speed, Torque	Encoder Type - Standard	Magnetic Incremental 4096 CPR or Absolute Single turn encoder
Protective functions	Over current, over/under voltage, overheating	Debug & configuration	Serial Interface
Digital Inputs	3 not isolated 5-24 Vdc PNP	Analog Inputs	1 with potentiometer or 0-10 Vdc
Digital Outputs	2 not isolated open drain, 5-24 Vdc 100 mA
