IVI110

IVI110 1500NX1000 M-S200

IVI110 1500NX1000 M-S200

Product Code: IVI1101500NX1000M-S200

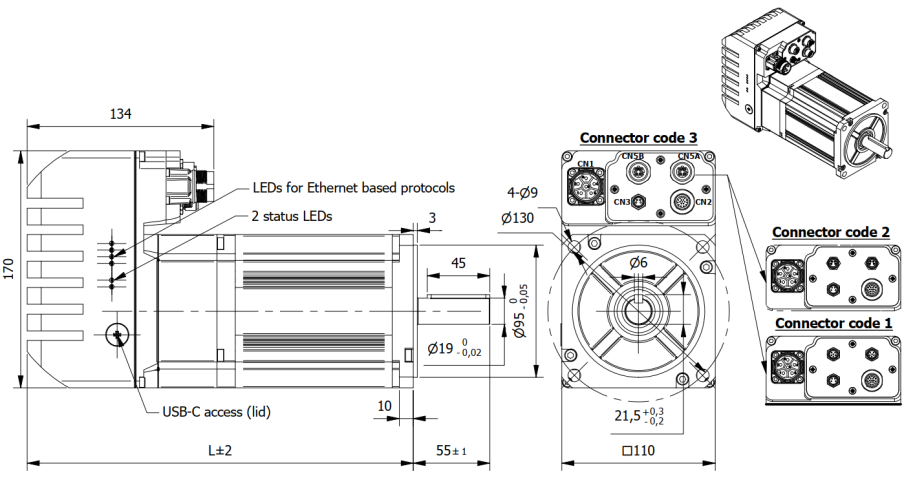

Technical Data Download Dimensions Software Accessories
Size110 mmLength (L)218 mm
InterfaceModbus-RTU Rated Power1500 Watt
Rated Torque4.77 NmRated Current43 A
Rated Voltage48 Vdcn° of Pole10
Rated Speed3000 rpmMax. Peak Torque14.3 Nm
Torque Constant0.11 Nm/AMax. Peak Current130 A
No-Load Current0.8 ABack EMF constant6.35 V/kRPM
Rotor Inertia3.1 Kgcm2Weight6.9 Kg
Shaft run out0.05 mmInsulation ClassB 130°C
Protection ClassIP65 Operating Temperature+5°C to +40°C
Humidity5% to 85% not condensing Radial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial force (at mid-shaft)630 N
Max. Axial Force315 NDielectric Strength (for 1min.)600 VAC
Insulation Resistance (min.500 VDC)100 MohmOperating modePosition, Speed, Torque
Encoder Type - StandardMagnetic Incremental/Absolute single turn 2500 CPR Encoder Type - OptionalMagnetic Absolute multi-turn 16bit (single-turn 17bit)
Protective functionsOver/Under voltage, Over current, Overheating, Short circuit Safety featureSafe Torque Off (STO) SIL3/PLe
Debug & configurationSerial interface Digital Inputs4 not isolated 5-24 Vdc PNP
Analog Inputs2 not isolated | 0-10 Vdc Digital Outputs2 not isolated 24 Vdc PNP
