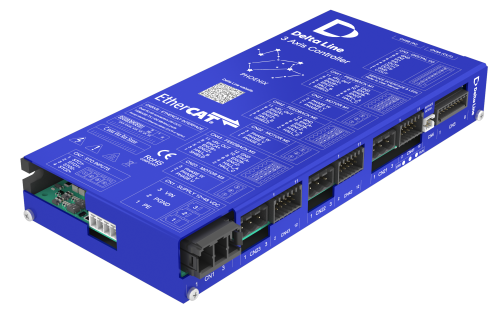

PHOENIX - B500B36M3 E002-S402

PHOENIX - B500B36M3 E002-S402

Number of Axis 3   |  Interface EtherCAT   |  Power Supply 12 - 48 VDC   |  Phase Current up to 12 (per axis) A rms  |  Peak Current 36 (for 2s. per axis) A peak

Product Code: B500B36M3 E002-S402

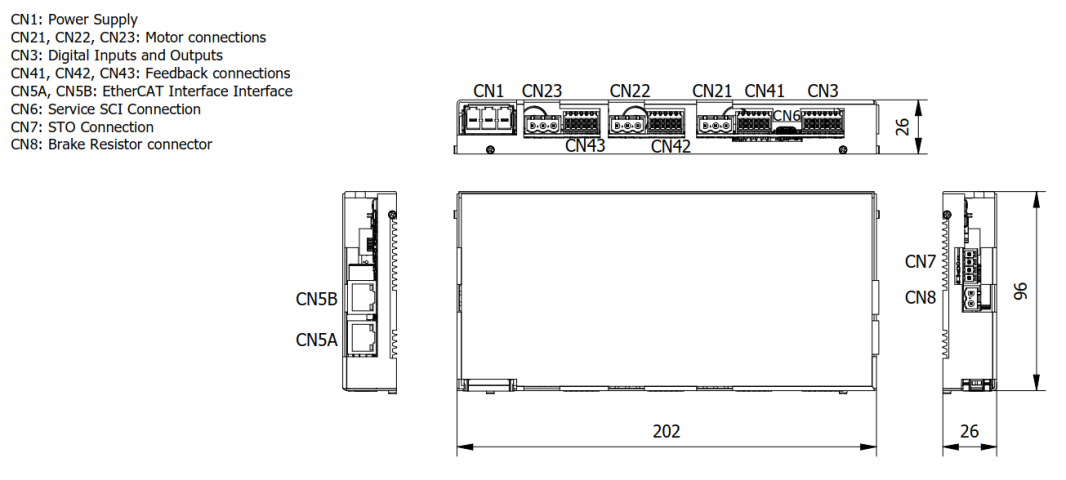

Technical Data Download Dimensions Software Accessories
Number of Axis3 InterfaceEtherCAT
Power Supply12 - 48 VDC Phase Current up to12 (per axis) A rms
Peak Current36 (for 2s. per axis) A peakMotor Power up to500 W
Logic Power Supply12 - 48 VDC (optional) Chopper frequency40 kHz
Weight300 gOpen / Closed LoopClosed Loop
Operating modeProfile position/ velocity/ homing mode, Cycling sync position/ velocity/ torque mode Protective functionsOver current, Over/Under Voltage, Overheating, Short circuit
Protection ClassIP00 Safety featureSafe Torque Off (STO) SIL3/Ple
Pollution degree2 Operating Temperature+5 / +40°C
Humidity5 - 85% Digital Inputs3
Digital Outputs3 Encoder (standard)Incremental encoder (not isolated): 5V Differential (RS422) or 5V Single-Ended (TTL/CMOS)
Hall effect sensors5V Single-Ended (TTL/CMOS)
