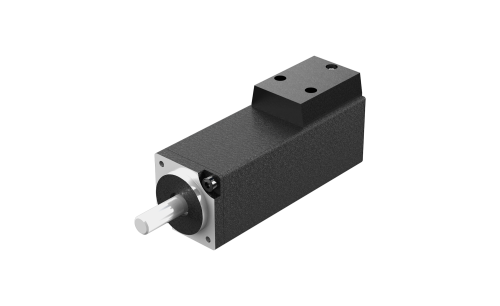

25SV03-24V-30EA1

Size 25 mm | Length (L) 73 mm | Nominal Voltage 24 VDC | Rated Torque 0.095 Nm | Rated Speed 3000 rpm

Product Code: 25SV03-24V-30EA1

Technical Data

Download

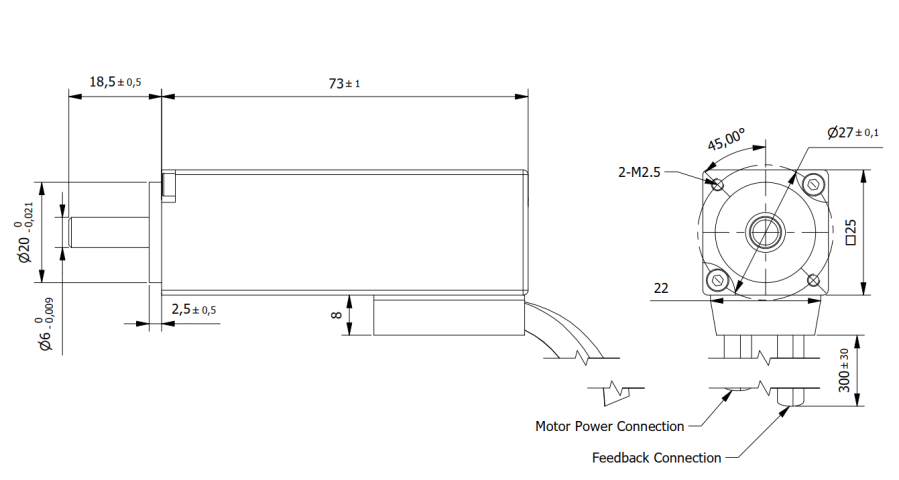

Dimensions

Size	25 mm	Length (L)	73 mm
Nominal Voltage	24 VDC	Rated Torque	0.095 Nm
Rated Speed	3000 rpm	n° of Pole	8
n° of Phase	3	Rated Power	30 Watt
Max. Peak Torque	0.285 Nm	Torque Constant	0.057 Nm/A
Rated Current	2 A	Max. Peak Current	6 A
Back EMF constant	3.42 V/kRPM	Line to Line Resistance	2.3±10% Ohm
Line to Line Inductance	0.7±20% mH	Rotor Inertia	1.27 gcm²
Weight	0.2 Kg	Protection Class	IP54
Insulation Class	F 155°C	Radial Play	0.02mm (max.4N)
Axial Play	0.14mm (max.4N) mm	Max. Radial Force (14mm from flange)	6 N
Max. Axial Force	5 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Encoder Type - Standard	Magnetic Absolute Multi-turn:17,16 bit
Encoder Type - Optional	on demand
