IVI100 with Brake


IVI100 with Brake

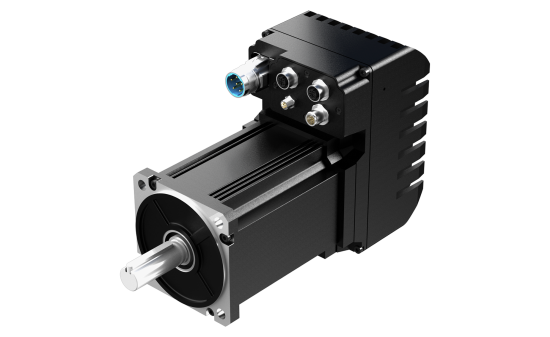

Our Servo Motors with integrated controller are among the most compact on the market. The powerful drive built directly into the motor reduces cabling and simplifies installation and setup, enhancing overall efficiency. These high-performing motors are IP65 rated, STO (Safe Torque Off) certified, and available with an optional integrated brake. All models support a wide range of Fieldbus protocols, including CANopen, Modbus-RTU, Modbus-TCP, EtherCAT, Profinet, EtherNet/IP and Powerlink.



IVI100 with Brake
.

Products
Product finder
Technology:
Category:
More Filters
Interface:
CANopen
CANopen - programmable
EtherCAT
EtherNet/IP
Modbus-RTU
Modbus TCP
PowerLink
Profinet

Product name
Size (mm)
Length (L) (mm)
Interface
Rated Power (Watt)
Rated Torque (Nm)
Brake
IVI100 1000BX1000 M-S200 100 249 Modbus-RTU 1000 3.18 24VDC - 10Nm
IVI100 1000BX1000 C-S200 100 249 CANopen - programmable 1000 3.18 24VDC - 10Nm
IVI100 1000BX1000 C-S402 100 249 CANopen 1000 3.18 24VDC - 10Nm
IVI100 1000BXX000 T-S200 100 249 Modbus TCP 1000 3.18 24VDC - 10Nm
IVI100 1000BXX000 E-S402 100 249 EtherCAT 1000 3.18 24VDC - 10Nm
IVI100 1000BX3000 P-S200 100 249 Profinet 1000 3.18 24VDC - 10Nm
IVI100 1000BX3000 R-S402 100 249 PowerLink 1000 3.18 24VDC - 10Nm
IVI100 1000BX3000 H-S200 100 249 EtherNet/IP 1000 3.18 24VDC - 10Nm
IVI100 1500BX1000 M-S200 100 277 Modbus-RTU 1500 4.77 24VDC - 10Nm
IVI100 1500BX1000 C-S200 100 277 CANopen - programmable 1500 4.77 24VDC - 10Nm
IVI100 1500BX1000 C-S402 100 277 CANopen 1500 4.77 24VDC - 10Nm
IVI100 1500BXX000 T-S200 100 277 Modbus TCP 1500 4.77 24VDC - 10Nm
IVI100 1500BXX000 E-S402 100 277 EtherCAT 1500 4.77 24VDC - 10Nm
IVI100 1500BX3000 P-S200 100 277 Profinet 1500 4.77 24VDC - 10Nm
IVI100 1500BX3000 R-S402 100 277 PowerLink 1500 4.77 24VDC - 10Nm
IVI100 1500BX3000 H-S200 100 277 EtherNet/IP 1500 4.77 24VDC - 10Nm
