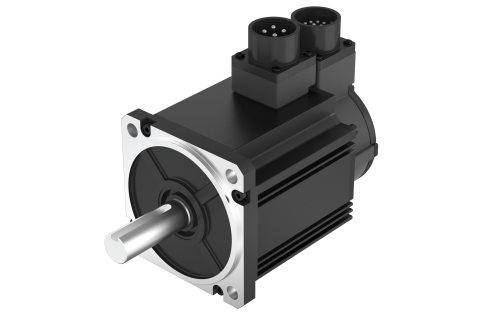

100SV-220VAC

100SV150-220V-30EA1

100SV150-220V-30EA1

Product Code: 100SV150-220V-30EA1

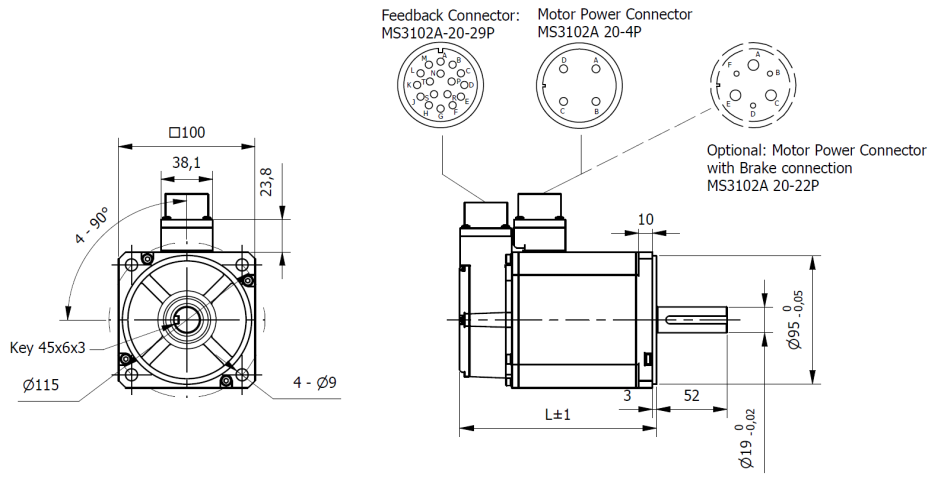

Technical Data Download Dimensions
Size100 mmLength (L)159 mm
Nominal Voltage220 VAC Rated Torque4.77 Nm
Rated Speed3000 rpmn° of Pole10
n° of Phase3 Rated Power1500 Watt
No-Load Speed5000±10% rpmMax. Peak Torque10.5 Nm
Torque Constant0.63 Nm/ARated Current7.5 A
Max. Peak Current16.7 ANo-Load Current0.8 A
Back EMF constant38 V/kRPMLine to Line Resistance0.54±10% Ohm
Line to Line Inductance5.2±20% mHRotor Inertia1.84 Kgcm2
Weight4.7 KgProtection ClassIP65
Insulation ClassF 155°C Radial Play0.02mm (max.4N)
Axial Play0.08mm (max.4N) mmMax. Radial Force (20mm from flange)490 N
Max. Axial Force196 NDielectric strength (for 1 sec.)600 VAC
Insulation Resistance (min.500 VDC)100 MohmEncoder Type - StandardOptical incremental 2500CPR
Encoder Type - Optionalon demand
