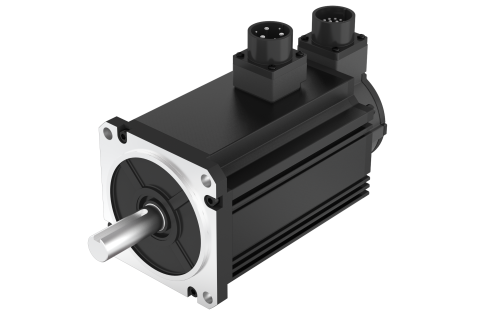

Product Code: 110SV200-48V-30EA2

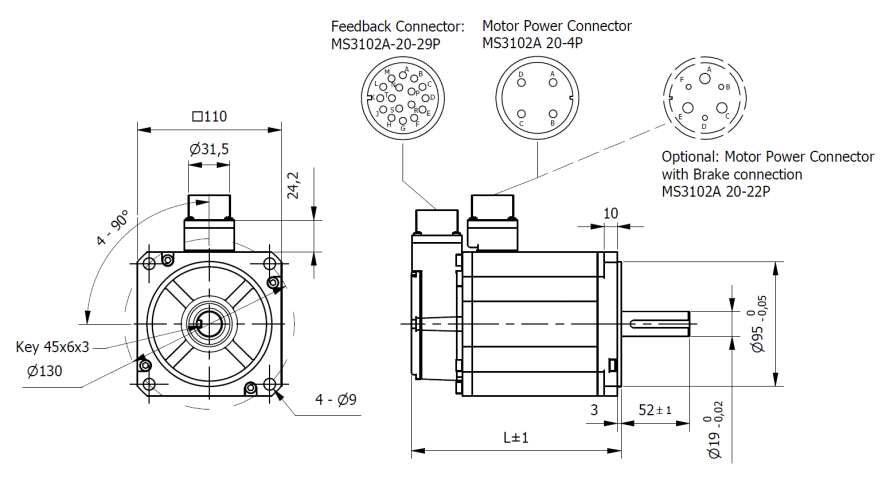

Technical Data Download Dimensions
Size110 mmLength (L)209 mm
Nominal Voltage48 VDC Rated Torque6.37 Nm
Rated Speed3000 rpmn° of Pole10
n° of Phase3 Rated Power2000 Watt
No-Load Speed5000±10% rpmMax. Peak Torque19.1 Nm
Torque Constant0.11 Nm/ARated Current58 A
Max. Peak Current174 ANo-Load Current0.8 A
Back EMF constant6.63 V/kRPMLine to Line Resistance0.009±10% Ohm
Line to Line Inductance0.145±20% mHRotor Inertia4.47 Kgcm2
Brake24VDC - 10Nm Weight7.9 Kg
Protection ClassIP65 Insulation ClassF 155°C
Radial Play0.02mm (max.4N) Axial Play0.08mm (max.4N) mm
Max. Radial Force (20mm from flange)630 NMax. Axial Force315 N
Dielectric strength (for 1 sec.)600 VACInsulation Resistance (min.500 VDC)100 Mohm
Encoder Type - StandardOptical incremental 2500CPR Encoder Type - Optionalon demand
