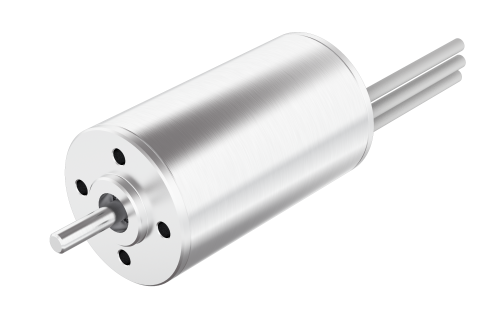

Product Code: 16SBL28.000

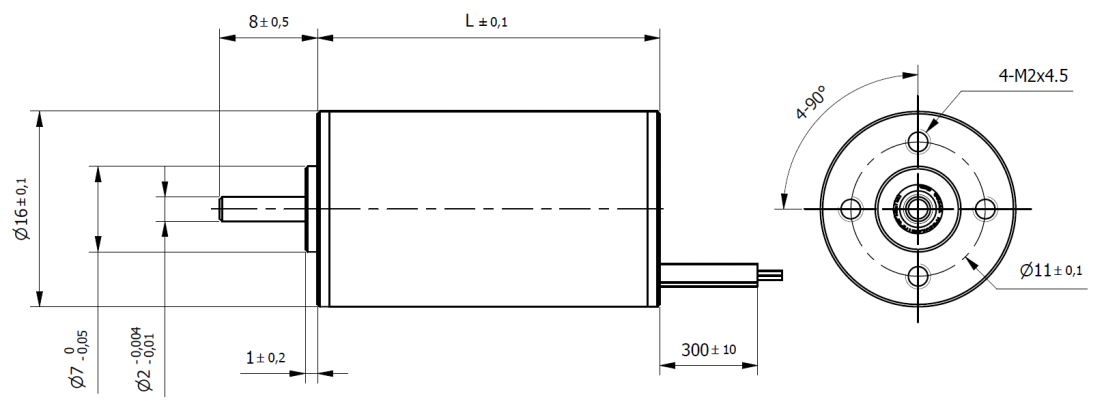

Technical Data Download Dimensions
SeriesSBL Size16 mm
Length (L)28 mmLength with Hall Sensors38 mm
Rated Voltage12 VdcRated Torque0.002 Nm
Rated Speed22000 rpmn° of Pole2
n° of Phase3 Max. Peak Torque0.005 Nm
Torque Constant4 mNm/ARated Current0.38 A
Max. Peak Current1.2 ANo-Load Current100 mA
Line to Line Resistance5.4 OhmLine to Line Inductance0.17 mH
Rotor Inertia0.4 gcm2Weight29 g
Hall Effect Angle120 °Shaft run out0.025 mm
Insulation ClassB Protection ClassIP40
Radial Play (360g load)0.025 mmAxial Play (1000g load)0.3 mm
Max. Radial Force (10mm from flange)15 NMax. Axial Force5 N
Dielectric strength (for 1 sec.)360 VACInsulation Resistance (min.500 VDC)100 Mohm
