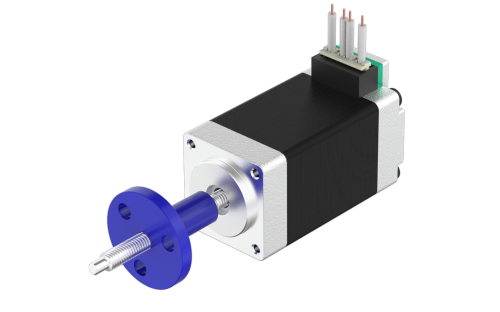

20E42-05-AA100

Size 20 mm | Nema 08 | Length (L) 42 mm | Current/Phase 0.5 A | Thrust ref 114 N | Travel per Step 0.003048 mm

Product Code: 20E42-05-AA100

Technical Data

Download

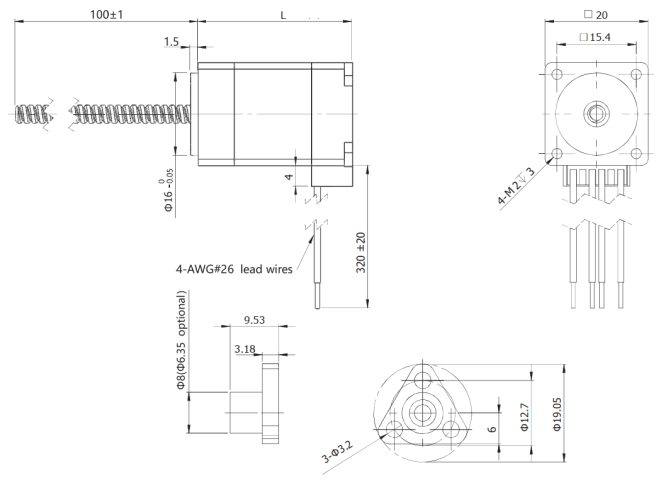

Dimensions

Size	20 mm	Nema	08
Length (L)	42 mm	Current/Phase	0.5 A
Rated Voltage	6.3 Vdc	Resistance/Phase	12.5 Ohm
Inductance/Phase	11 mH	N° of Leads	4
Rotor Inertia	3 gcm²	Weight	80 g
Thrust ref	114 N	Screw Diameter	3.5 mm
Screw Lead	0.6096 mm	Travel per Step	0.003048 mm
Screw Length (Ls)	100 mm	Wiring	Bipolar
Step Angle	1.8 °	Insulation Class	B
Protection class	IP20	Operating Temperature	-20°C +50°C
Temperature Rise	max. 80 °C	Dielectric strength (for 1 sec.)	500 VAC
