Home   Products   >   Stepper motors   >   Hybrid Stepper motors   >   20STC

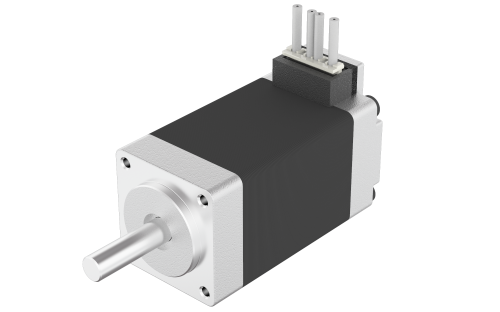

Product Code: 20STC33-0604A.000

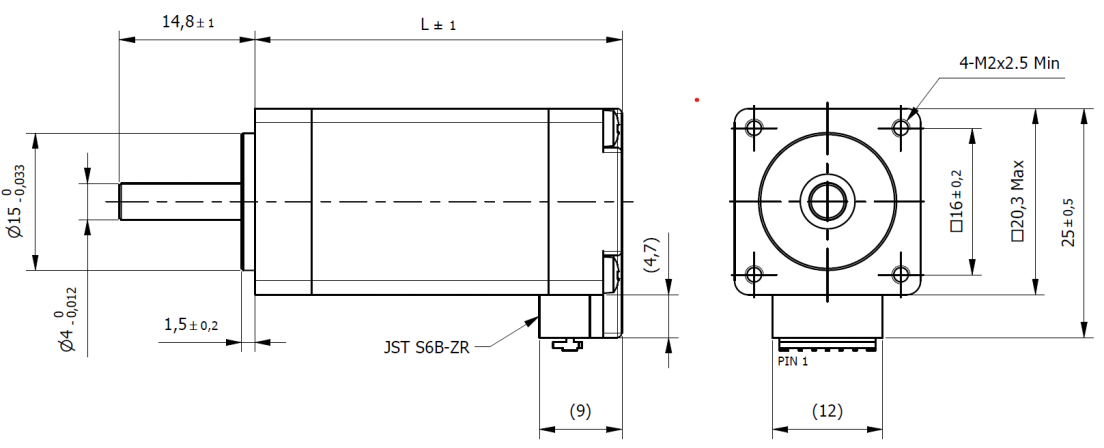

Technical Data Download Dimensions
SeriesSTC Size20 mm
Nema08 Length (L)33 mm
Current/Phase0.6 AHolding Torque0.022 Nm
Step Angle1.8 °Rated Voltage3.84 Vdc
Resistance/Phase6.4 OhmInductance/Phase2.6 mH
Rotor Inertia2 gcm2Detent Torque0.002 Nm
N° of Leads4 Weight0.06 Kg
Step Angle accuracy±5 %Insulation ClassB
Protection ClassIP30 Operating Temperature-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CRadial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial Force (20mm from flange)10 N
Max. Axial Force4 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
