Home Products > Stepper Linear Actuators > External hybrid stepper linear actuators > 28E

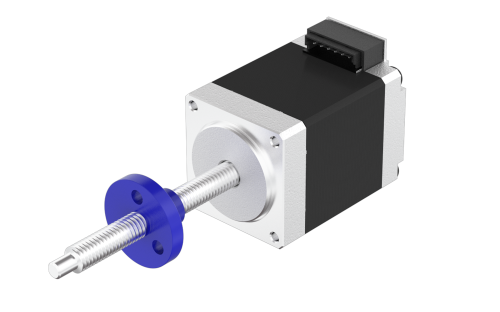

28E45-10-BE100

Size 28 mm | Nema 11 | Length (L) 45 mm | Current/Phase 1 A | Thrust ref 40 N | Travel per Step 0.0508 mm

Product Code: 28E45-10-BE100

Technical Data

Download

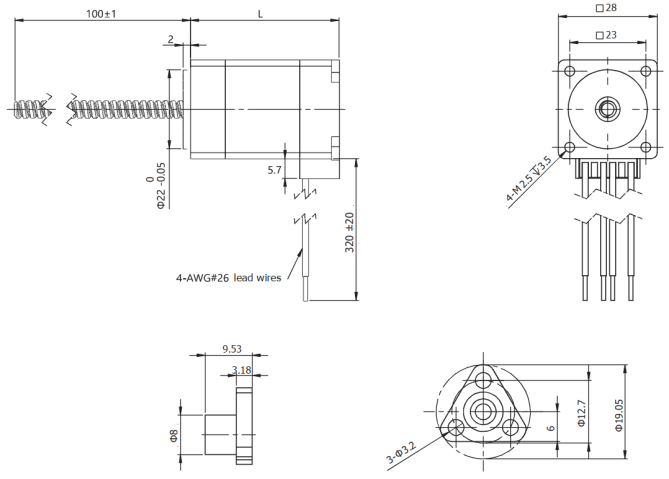

Dimensions

Size	28 mm	Nema	11
Length (L)	45 mm	Current/Phase	1 A
Rated Voltage	3.7 Vdc	Resistance/Phase	3.7 Ohm
Inductance/Phase	2.3 mH	N° of Leads	4
Rotor Inertia	13 gcm²	Weight	180 g
Thrust ref	40 N	Screw Diameter	4.76 mm
Screw Lead	10.16 mm	Travel per Step	0.0508 mm
Screw Length (Ls)	100 mm	Wiring	Bipolar
Step Angle	1.8 °	Insulation Class	B
Protection class	IP20	Operating Temperature	-20°C +50°C
Temperature Rise	max. 80 °C	Dielectric strength (for 1 sec.)	500 VAC
