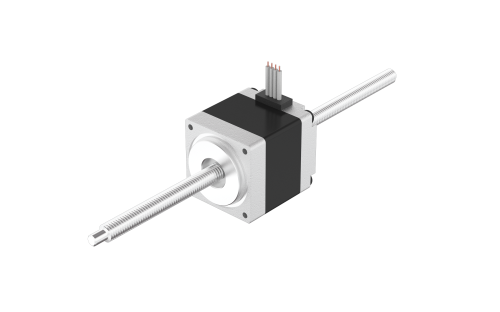

28N45-10-BD100

Size 28 mm | Nema 11 | Length (L) 45 mm | Current/Phase 1 A | Thrust ref 85 N | Travel per Step 0.0254 mm

Product Code: 28N45-10-BD100

Technical Data

Download

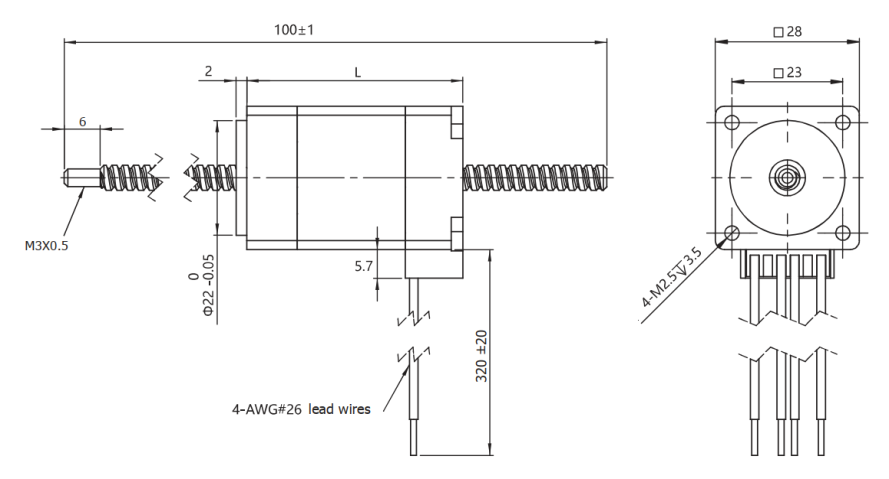

Dimensions

Size	28 mm	Nema	11
Length (L)	45 mm	Current/Phase	1 A
Rated Voltage	3.7 Vdc	Resistance/Phase	3.7 Ohm
Inductance/Phase	2.3 mH	N° of Leads	4
Rotor Inertia	13 gcm²	Weight	180 g
Thrust ref	85 N	Screw Diameter	4.76 mm
Screw Lead	5.08 mm	Travel per Step	0.0254 mm
Screw Length (Ls)	100 mm	Wiring	Bipolar
Step Angle	1.8 °	Insulation Class	B
Protection class	IP20	Operating Temperature	-20°C +50°C
Temperature Rise	max. 80 °C	Dielectric strength (for 1 sec.)	500 VAC
