Product Code: 28S10-0504.000
Buy online:
RS logo

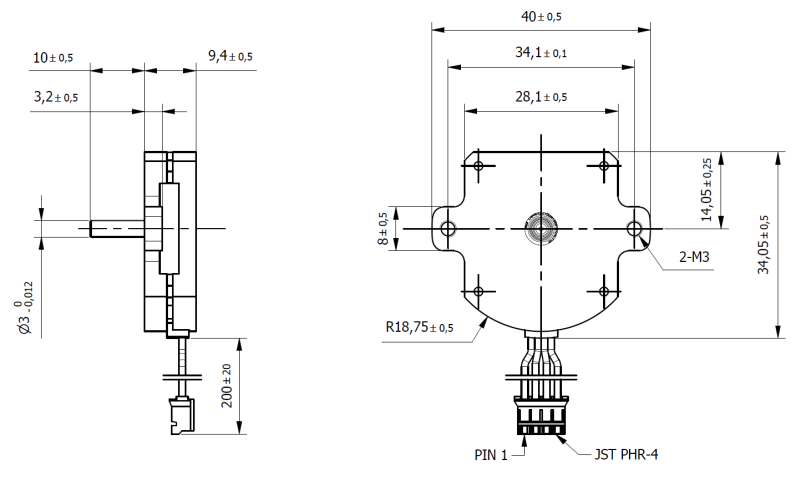

Technical Data Download Dimensions
Size28 mmLength (L)9.4 mm
Current/Phase0.5 AHolding Torque0.0098 Nm
Step Angle1.8 °Rated Voltage1.85 Vdc
Resistance/Phase3.7 OhmInductance/Phase0.88 mH
Rotor Inertia1.7 gcm2N° of Leads4
Weight0.028 KgStep Angle accuracy±5 %
Insulation ClassB Protection ClassIP30
Operating Temperature-20°C +50°C Max. Temp. Rise (rated current, 2-phase on)80 °C
Radial Play (450g load)0.06 mmAxial Play (450g load)0.04 mm
Max. Radial Force (5mm from flange)4.5 NMax. Axial Force4.5 N
Dielectric Strength (for 1min.)500 VACInsulation Resistance (min.500 VDC)100 Mohm
