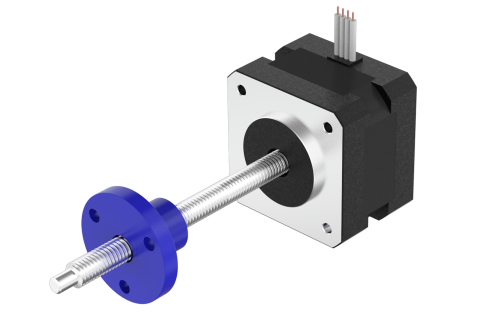

35E34-15-CA100

Size 35 mm | Nema 14 | Length (L) 34 mm | Current/Phase 1.5 A | Thrust ref 208 N | Travel per Step 0.00635 mm

Product Code: 35E34-15-CA100

Technical Data

Download

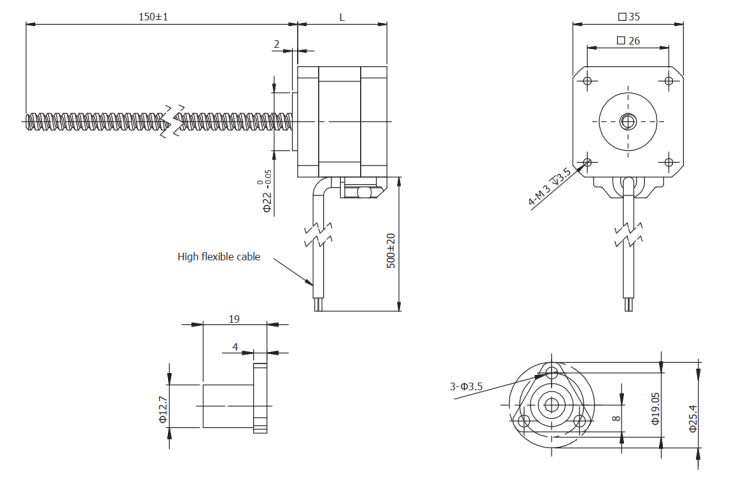

Dimensions

Size	35 mm	Nema	14
Length (L)	34 mm	Current/Phase	1.5 A
Rated Voltage	1.4 Vdc	Resistance/Phase	0.95 Ohm
Inductance/Phase	1.4 mH	N° of Leads	4
Rotor Inertia	20 gcm²	Weight	190 g
Thrust ref	208 N	Screw Diameter	6.35 mm
Screw Lead	1.27 mm	Travel per Step	0.00635 mm
Screw Length (Ls)	100 mm	Wiring	Bipolar
Step Angle	1.8 °	Insulation Class	B
Protection class	IP20	Operating Temperature	-20°C +50°C
Temperature Rise	max. 80 °C	Dielectric strength (for 1 sec.)	500 VAC
