38SV-220VAC

38SV05-220V-30EA1

38SV05-220V-30EA1

Product Code: 38SV05-220V-30EA1

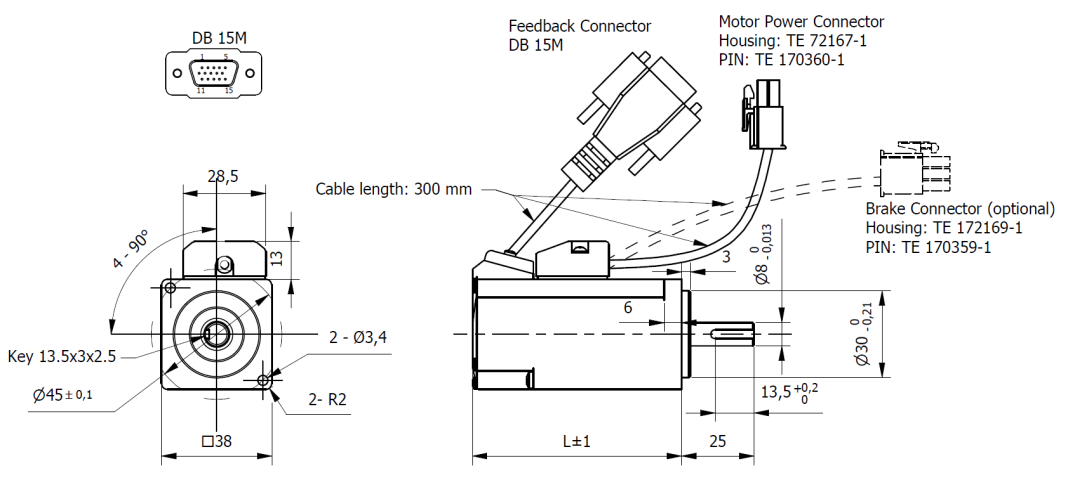

Technical Data Download Dimensions
Size38 mmLength (L)72 mm
Nominal Voltage220 VAC Rated Torque0.16 Nm
Rated Speed3000 rpmn° of Pole10
n° of Phase3 Rated Power50 Watt
No-Load Speed10500±10% rpmMax. Peak Torque0.48 Nm
Torque Constant0.032 Nm/ARated Current0.5 A
Max. Peak Current1.5 ANo-Load Current0.1 A
Back EMF constant21 V/kRPMLine to Line Resistance33±10% Ohm
Line to Line Inductance24±20% mHRotor Inertia0.024 Kgcm2
Weight0.4 KgProtection ClassIP65
Insulation ClassF 155°C Radial Play0.02mm (max.4N)
Axial Play0.14mm (max.4N) mmMax. Radial Force (14mm from flange)69 N
Max. Axial Force59 NDielectric strength (for 1 sec.)600 VAC
Insulation Resistance (min.500 VDC)100 MohmEncoder Type - StandardOptical incremental 2500CPR
Encoder Type - Optionalon demand
