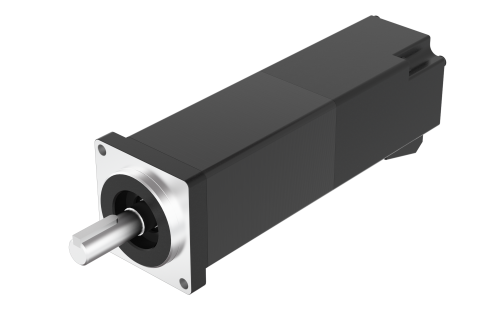

Product Code: 38SV05-220V-30EA2

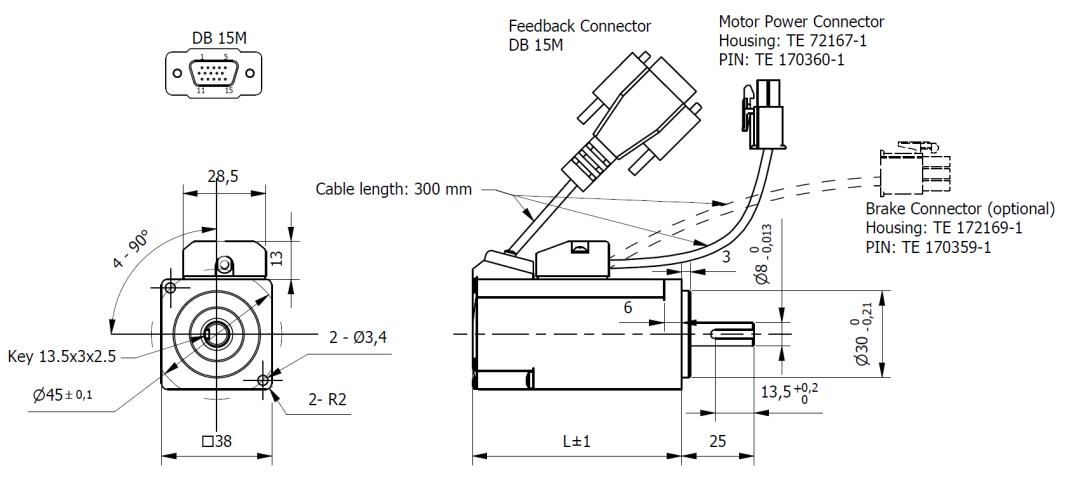

Technical Data Download Dimensions
Size38 mmLength (L)106 mm
Nominal Voltage220 VAC Rated Torque0.16 Nm
Rated Speed3000 rpmn° of Pole10
n° of Phase3 Rated Power50 Watt
No-Load Speed10500±10% rpmMax. Peak Torque0.48 Nm
Torque Constant0.032 Nm/ARated Current0.5 A
Max. Peak Current1.5 ANo-Load Current0.1 A
Back EMF constant21 V/kRPMLine to Line Resistance33±10% Ohm
Line to Line Inductance24±20% mHRotor Inertia0.034 Kgcm2
Brake24VDC - 0.35Nm Weight0.65 Kg
Protection ClassIP65 Insulation ClassF 155°C
Radial Play0.02mm (max.4N) Axial Play0.14mm (max.4N) mm
Max. Radial Force (14mm from flange)69 NMax. Axial Force59 N
Dielectric strength (for 1 sec.)600 VACInsulation Resistance (min.500 VDC)100 Mohm
Encoder Type - StandardOptical incremental 2500CPR Encoder Type - Optionalon demand
