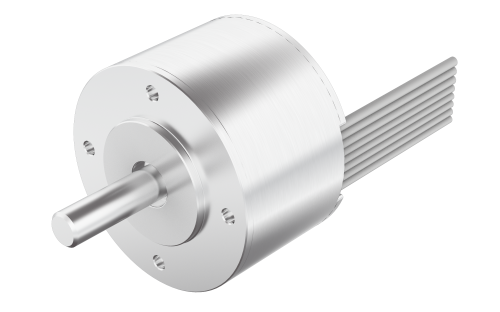

Product Code: 40BL26-24V.000

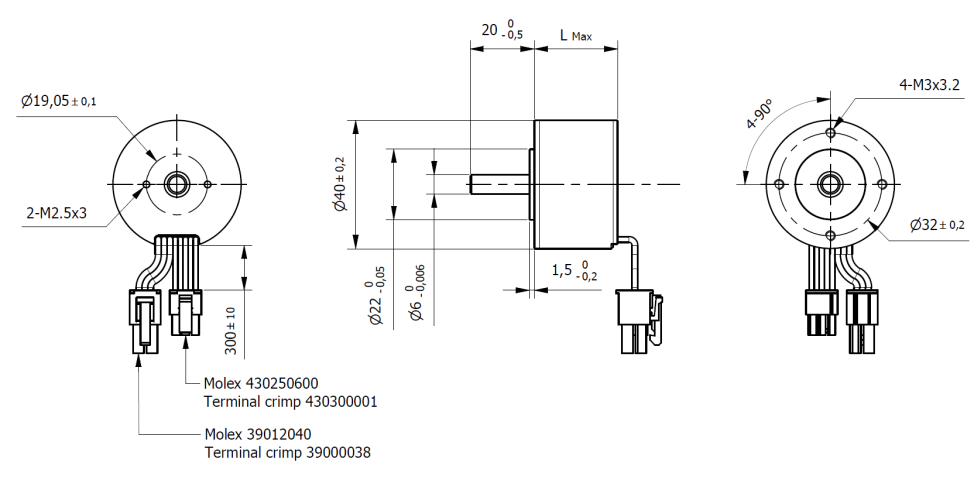

Technical Data Download Dimensions
SeriesBL Size40 mm
Length (L)26 mmWeight0.17 Kg
Rated Voltage24 VdcRated Torque0.052 Nm
Rated Speed10300 rpmn° of Pole14
n° of Phase3 Max. Peak Torque0.16 Nm
Torque Constant0.017 Nm/ARated Current3.06 A
Max. Peak Current9.35 ANo-Load Current285 mA
Line to Line Resistance0.50 OhmLine to Line Inductance0.39 mH
Rotor Inertia10.5 gcm2Hall Effect Angle120 °
Shaft run out0.05 mmInsulation ClassF
Protection ClassIP40 Radial Play (450g load)Preloaded mm
Axial Play (450g load)0.15 mmMax. Radial Force (5mm from flange)15 N
Max. Axial Force5 NDielectric strength (for 1 sec.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
