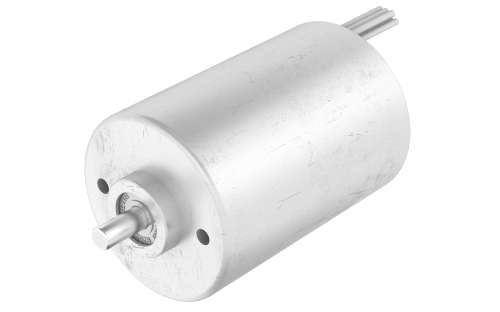

Product Code: 42CBL60.000
Buy online:
RS logo

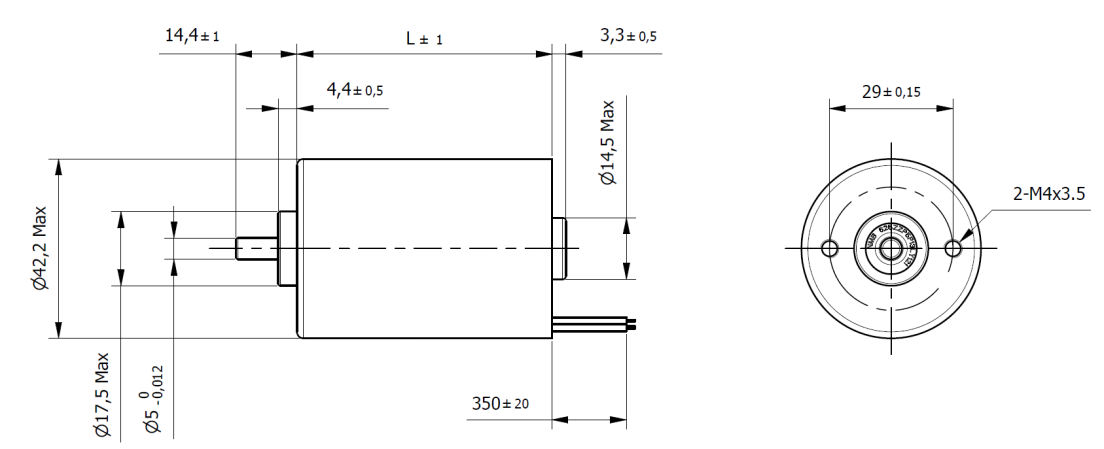

Technical Data Download Dimensions
n° of Pole4 SeriesCBL
Size42 mmLength (L)60 mm
Weight0.35 KgRated Voltage24 Vdc
Rated Torque0.068 NmRated Speed5900 rpm
n° of Phase3 Max. Peak Torque0.2 Nm
Torque Constant0.032 Nm/ARated Current2.13 A
Max. Peak Current6.6 ANo-Load Current430 mA
Line to Line Resistance0.66 OhmLine to Line Inductance0.63 mH
Rotor Inertia44 gcm2Hall Effect Angle120 °
Shaft run out0.025 mmInsulation ClassB
Protection ClassIP40 Radial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial Force (10mm from flange)25 N
Max. Axial Force15 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
