42E34-15-CA100

Size 42 mm | Nema 17 | Length (L) 34 mm | Current/Phase 1.5 A | Thrust ref 445 N | Travel per Step 0.00635 mm

Product Code: 42E34-15-CA100

Technical Data

Download

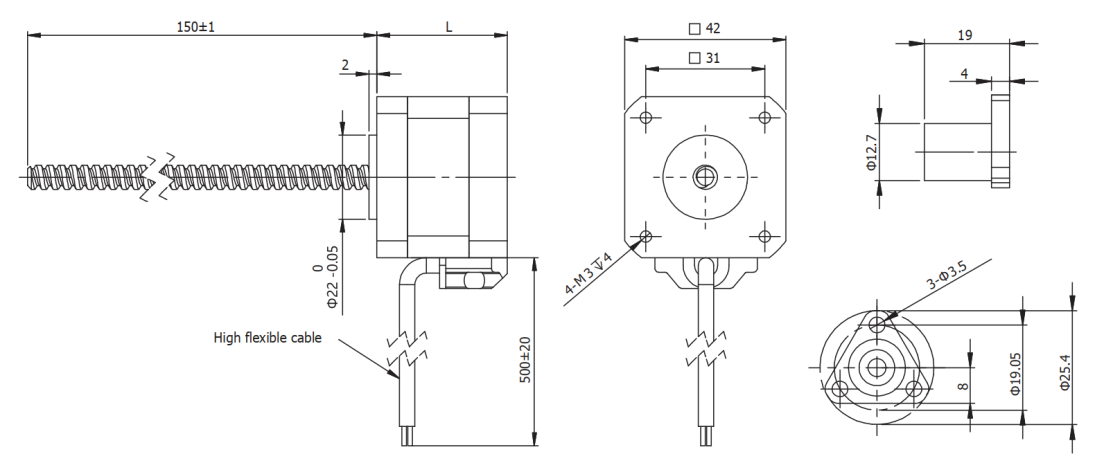

Dimensions

Size	42 mm	Nema	17
Length (L)	34 mm	Current/Phase	1.5 A
Rated Voltage	2.6 Vdc	Resistance/Phase	1.8 Ohm
Inductance/Phase	2.6 mH	N° of Leads	4
Rotor Inertia	35 gcm²	Weight	250 g
Thrust ref	445 N	Screw Diameter	6.35 mm
Screw Lead	1.27 mm	Travel per Step	0.00635 mm
Screw Length (Ls)	100 mm	Wiring	Bipolar
Step Angle	1.8 °	Insulation Class	B
Protection class	IP20	Operating Temperature	-20°C +50°C
Temperature Rise	max. 80 °C	Dielectric strength (for 1 sec.)	500 VAC
