Home   Products   >   Gearboxes   >   Planetary gearboxes   >   42JMS


Product Code: 42JMS-3-71.3.000

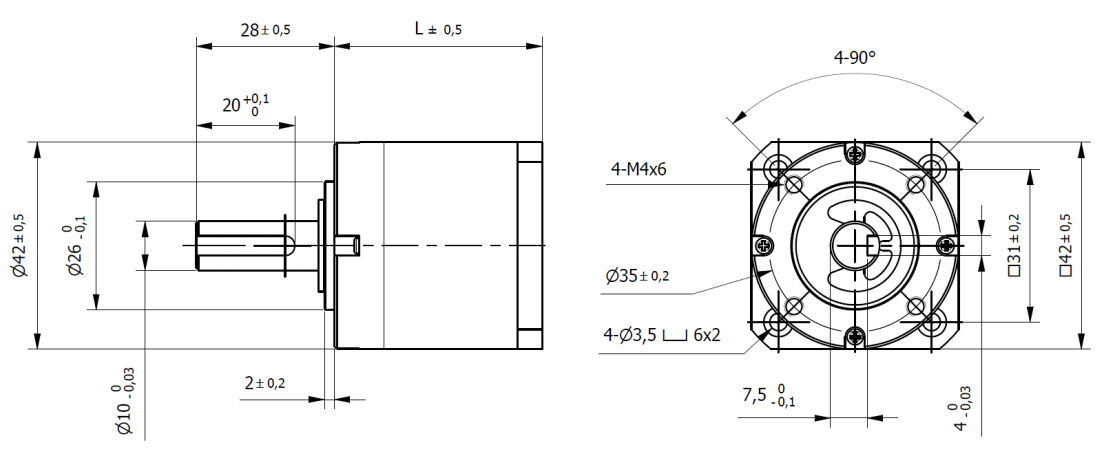

Technical Data Download Dimensions
SeriesJMS Size42 mm
Length (L)52.5 mmStages3
Reduction Ratio71.3 Nominal Output Torque10 Nm
Recommended Input Speed4000 rpmMax. Output Torque30 Nm
Efficiency73 %Average Backlash No-load≤1,5 °
Weight372 gMax. Radial load200 N
Max. Axial load100 NRadial Play<0.06mm
Axial Play<0.3 mmPress-Fit Max.150 N
Operating Temperature-20°C +80°C Bearing outputBall Bearings
