42N40-15-CC100

Size 42 mm | Nema 17 | Length (L) 40 mm | Current/Phase 1.5 A | Thrust ref 150 N | Travel per Step 0.03175 mm

Product Code: 42N40-15-CC100

Technical Data

Download

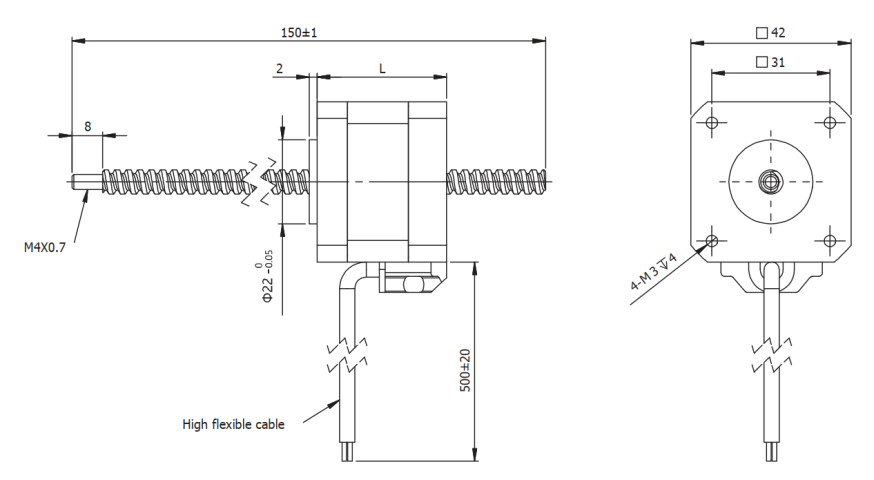

Dimensions

Size	42 mm	Nema	17
Length (L)	40 mm	Current/Phase	1.5 A
Rated Voltage	3.3 Vdc	Resistance/Phase	2.2 Ohm
Inductance/Phase	4.6 mH	N° of Leads	4
Rotor Inertia	55 gcm²	Weight	290 g
Thrust ref	150 N	Screw Diameter	6.35 mm
Screw Lead	6.35 mm	Travel per Step	0.03175 mm
Screw Length (Ls)	100 mm	Wiring	Bipolar
Step Angle	1.8 °	Insulation Class	B
Protection class	IP20	Operating Temperature	-20°C +50°C
Temperature Rise	max. 80 °C	Dielectric strength (for 1 sec.)	500 VAC
