Home Products > Brushless DC motors > Brushless DC Slotted motors > 57BL -BLA

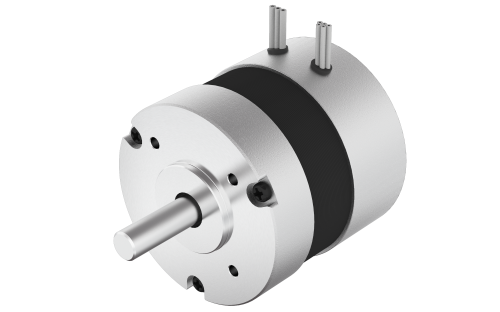

57BL54

n° of Pole 4 | Size 57 mm | Length (L) 53.6 mm | Rated Voltage 36 Vdc | Rated Torque 0.11 Nm | Rated Speed 4000 rpm | Dielectric strength (for 1 sec.) 600 VAC

Product Code: 57BL54.000

Technical Data

Download

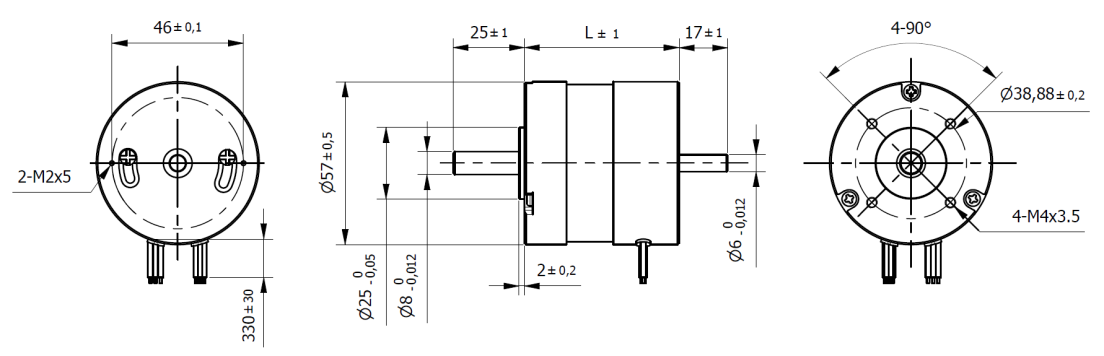

Dimensions

n° of Pole	4	Series	BL
Size	57 mm	Length (L)	53.6 mm
Weight	0.44 Kg	Rated Voltage	36 Vdc
Rated Torque	0.11 Nm	Rated Speed	4000 rpm
n° of Phase	3	Max. Peak Torque	0.39 Nm
Torque Constant	0.061 Nm/A	Rated Current	1.8 A
Max. Peak Current	6.8 A	No-Load Current	300 mA
Line to Line Resistance	1.5 Ohm	Line to Line Inductance	4.4 mH
Rotor Inertia	75 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Max. Radial Force (10mm from flange)	75 N
Max. Axial Force	15 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
