Home Products > Brushless DC motors > Brushless DC Slotted motors > 57BL -BLA

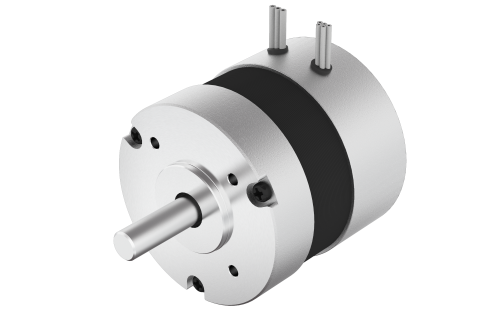

57BLA03

n° of Pole 6 | Size 57 mm | Length (L) 93.6 mm | Rated Voltage 36 Vdc | Rated Torque 0.6 Nm | Rated Speed 4000 rpm | Dielectric strength (for 1 sec.) 600 VAC

Product Code: 57BLA03.000

Technical Data

Download

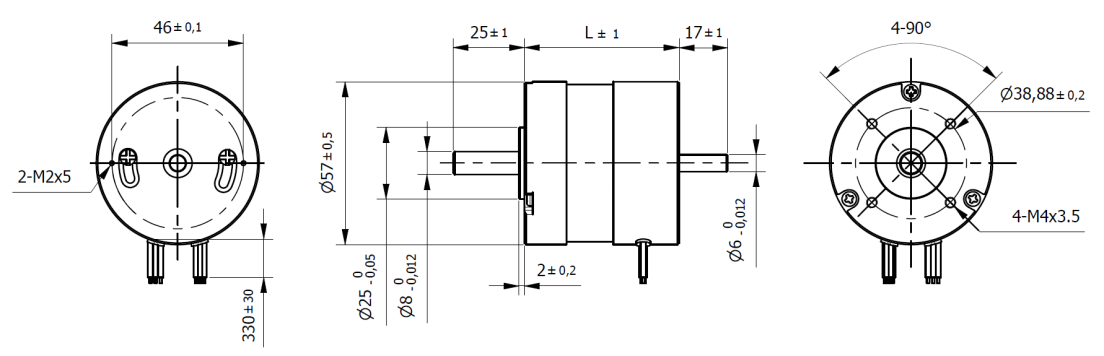

Dimensions

n° of Pole	6	Series	BL
Size	57 mm	Length (L)	93.6 mm
Weight	1.25 Kg	Rated Voltage	36 Vdc
Rated Torque	0.6 Nm	Rated Speed	4000 rpm
n° of Phase	3	Max. Peak Torque	1.9 Nm
Torque Constant	0.06 Nm/A	Rated Current	10 A
Max. Peak Current	29 A	No-Load Current	580 mA
Line to Line Resistance	0.25 Ohm	Line to Line Inductance	0.4 mH
Rotor Inertia	250 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Max. Radial Force (20mm from flange)	115 N
Max. Axial Force	45 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
