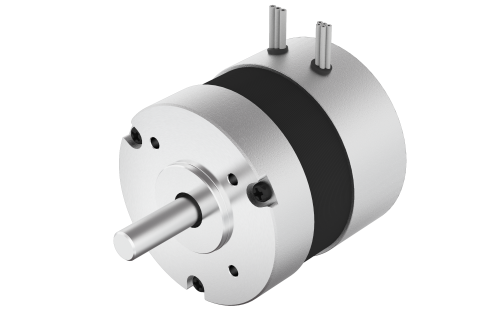

57BLA04 57BL -BLA | Fulling

57BLA04

57BLA04

n° of Pole 6   |  Size 57 mm  |  Length (L) 113.6 mm  |  Rated Voltage 36 Vdc  |  Rated Torque 0.8 Nm  |  Rated Speed 4000 rpm

Product Code: 57BLA04.000

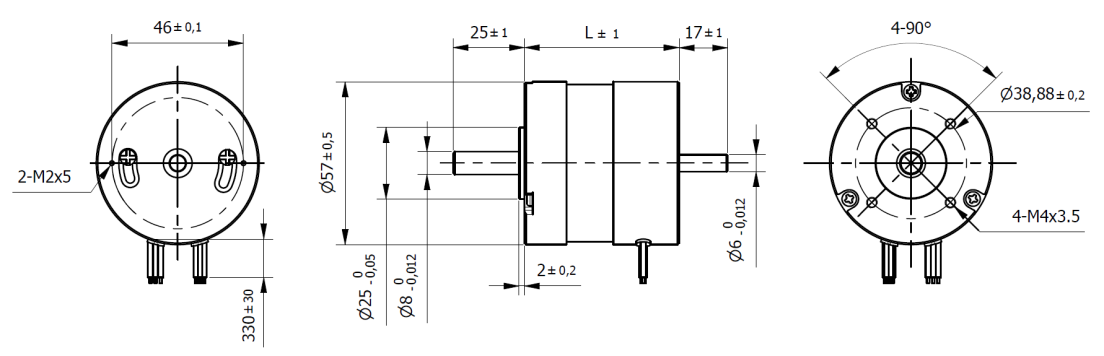

Technical Data Download Dimensions
n° of Pole6 SeriesBL
Size57 mmLength (L)113.6 mm
Weight1.25 KgRated Voltage36 Vdc
Rated Torque0.8 NmRated Speed4000 rpm
n° of Phase3 Max. Peak Torque2.4 Nm
Torque Constant0.07 Nm/ARated Current11.43 A
Max. Peak Current35 ANo-Load Current240 mA
Line to Line Resistance0.2 OhmLine to Line Inductance0.25 mH
Rotor Inertia693 gcm2Hall Effect Angle120 °
Shaft run out0.025 mmInsulation ClassB
Protection ClassIP40 Max. Radial Force (20mm from flange)115 N
Max. Axial Force75 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
