57BLB

57BLB80

57BLB80

Product Code: 57BLB80.000

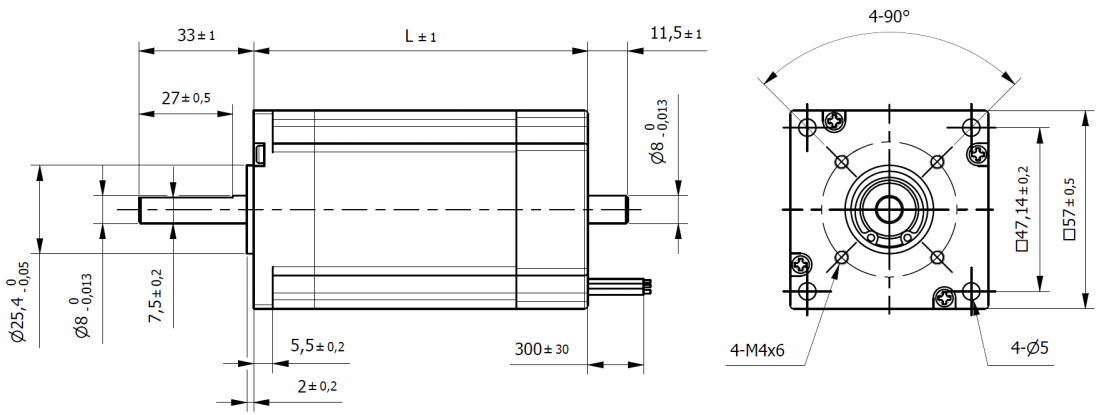

Technical Data Download Dimensions
SeriesBL Size57 mm
Length (L)116 mmWeight1.2 Kg
Rated Voltage36 VdcRated Torque0.6 Nm
Rated Speed3000 rpmn° of Pole8
n° of Phase3 Max. Peak Torque1.8 Nm
Torque Constant0.08 Nm/ARated Current7.5 A
Max. Peak Current23.8 ANo-Load Current620 mA
Line to Line Resistance0.5 OhmLine to Line Inductance0.6 mH
Rotor Inertia430 gcm2Hall Effect Angle120 °
Shaft run out0.025 mmInsulation ClassB
Protection ClassIP40 Radial Play (450g load)0.025 mm
Max. Radial Force (10mm from flange)115 NMax. Axial Force45 N
Dielectric Strength (for 1min.)500 VACInsulation Resistance (min.500 VDC)100 Mohm
