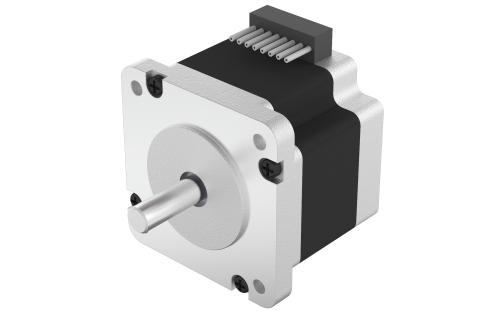

60SH86-2008AF

60SH86-2008AF

Product Code: 60SH86-2008AF.000
Buy online:
RS logo

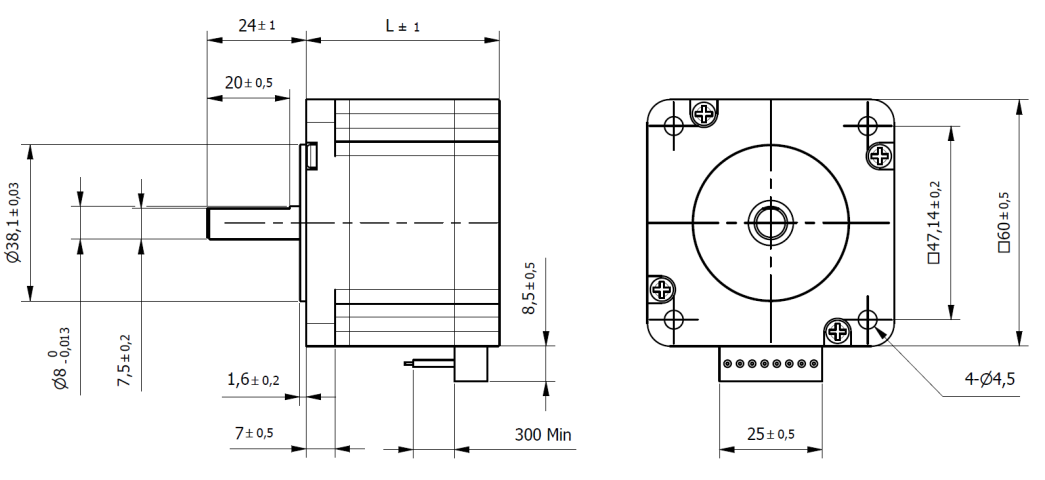

Technical Data Download Dimensions
SeriesSH Size60 mm
Nema24 Length (L)86 mm
Current/Phase2.8 AHolding Torque3.1 Nm
Step Angle1.8 °Rated Voltage4.17 Vdc
Resistance/Phase1.5 OhmInductance/Phase6.8 mH
Rotor Inertia840 gcm2Detent Torque0.098 Nm
N° of Leads8 Weight1.4 Kg
Step Angle accuracy±5 %Insulation ClassB
Protection ClassIP30 Operating Temperature-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CRadial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial Force (20mm from flange)75 N
Max. Axial Force15 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
