60SV40-220V-30EA1

Product Code: 60SV40-220V-30EA1

Technical Data

Download

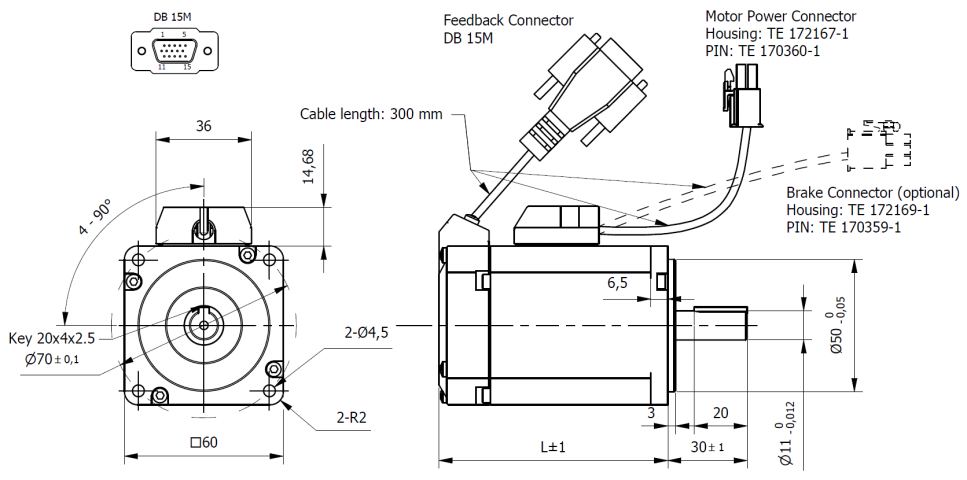

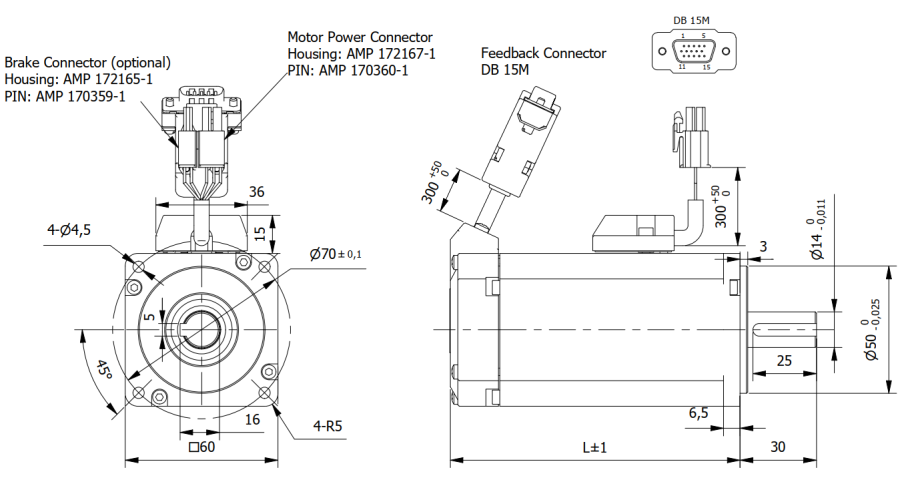

Dimensions

Size	60 mm	Length (L)	99 mm
Nominal Voltage	220 VAC	Rated Torque	1.27 Nm
Rated Speed	3000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	400 Watt
No-Load Speed	8800±10% rpm	Max. Peak Torque	3.81 Nm
Torque Constant	0.41 Nm/A	Rated Current	3.4 A
Max. Peak Current	10.2 A	No-Load Current	0.8 A
Back EMF constant	25 V/kRPM	Line to Line Resistance	2.8±10% Ohm
Line to Line Inductance	5.1±20% mH	Rotor Inertia	0.38 Kgcm²
Weight	1.3 Kg	Protection Class	IP65
Insulation Class	F 155°C	Radial Play	0.02mm (max.4N)
Axial Play	0.08mm (max.4N) mm	Max. Radial Force (20mm from flange)	245 N
Max. Axial Force	98 N	Dielectric strength (for 1 sec.)	1200 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Encoder Type - Standard	Magnetic incremental 2500CPR
Encoder Type - Optional	Optical incremental or Magnetic Absolute
