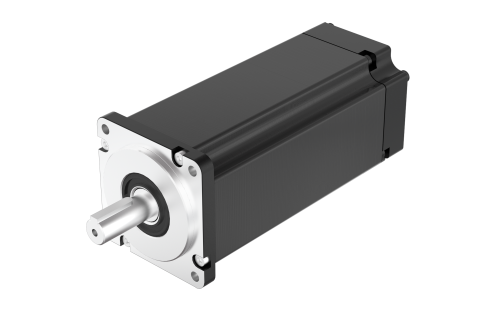

Product Code: 60SV40-48V-30EA2

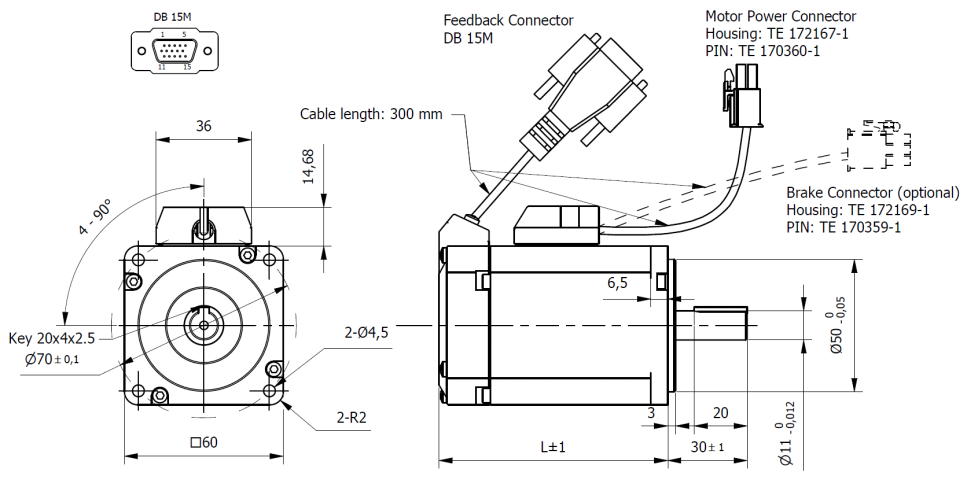

Technical Data Download Dimensions
Size60 mmLength (L)142.5 mm
Nominal Voltage48 VDC Rated Torque1.27 Nm
Rated Speed3000 rpmn° of Pole10
n° of Phase3 Rated Power400 Watt
No-Load Speed5200±10% rpmMax. Peak Torque3.81 Nm
Torque Constant0.107 Nm/ARated Current12 A
Max. Peak Current36 ANo-Load Current<1 A
Back EMF constant6.5 V/kRPMLine to Line Resistance0.23±10% Ohm
Line to Line Inductance0.3±20% mHRotor Inertia0.25 Kgcm2
Brake24VDC - 1.5Nm Weight1.85 Kg
Protection ClassIP65 Insulation ClassF 155°C
Radial Play0.02mm (max.4N) Axial Play0.14mm (max.4N) mm
Max. Radial Force (20mm from flange)245 NMax. Axial Force98 N
Dielectric strength (for 1 sec.)600 VACInsulation Resistance (min.500 VDC)100 Mohm
Encoder Type - StandardOptical incremental 2500CPR Encoder Type - Optionalon demand
