70BLF

70BLF10-48V

70BLF10-48V

Product Code: 70BLF10-48V.000

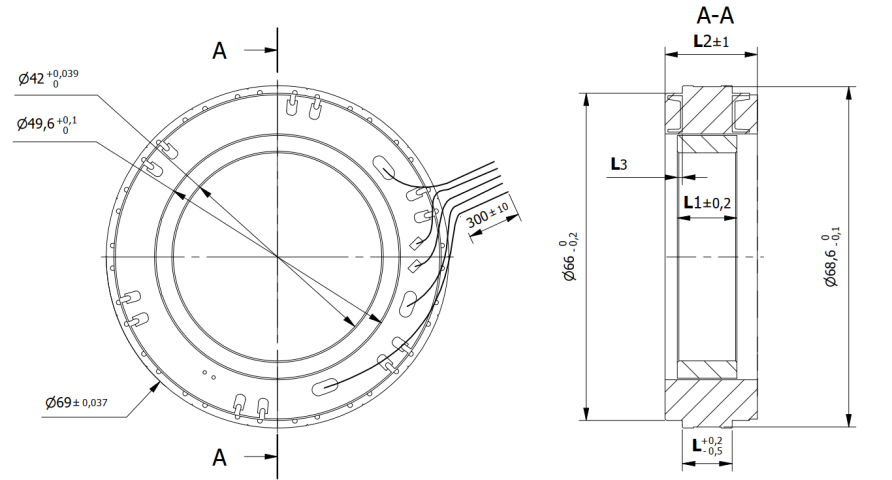

Technical Data Download Dimensions
Size70 mmLength (L)23.5 mm
Rated Voltage48 VdcRated Torque0.55 Nm
Rated Speed3650 rpmn° of Pole20
n° of Phase3 Max. Peak Torque1.65 Nm
Torque Constant0.12 Nm/ARated Current5.1 A
Max. Peak Current15.5 ANo-Load Current400 mA
Line to Line Resistance0.38 OhmLine to Line Inductance0.33 mH
Rotor Inertia333 gcm2Weight0.21 Kg
Hall Effect Angle120 °Insulation ClassB
Dielectric strength (for 1 sec.)1000 VACInsulation Resistance (min.500 VDC)100 Mohm
Operating Temperature-20°C +50°C
