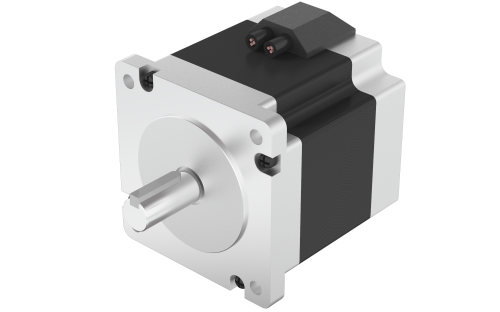

Product Code: 86SC84-6004E4K.000

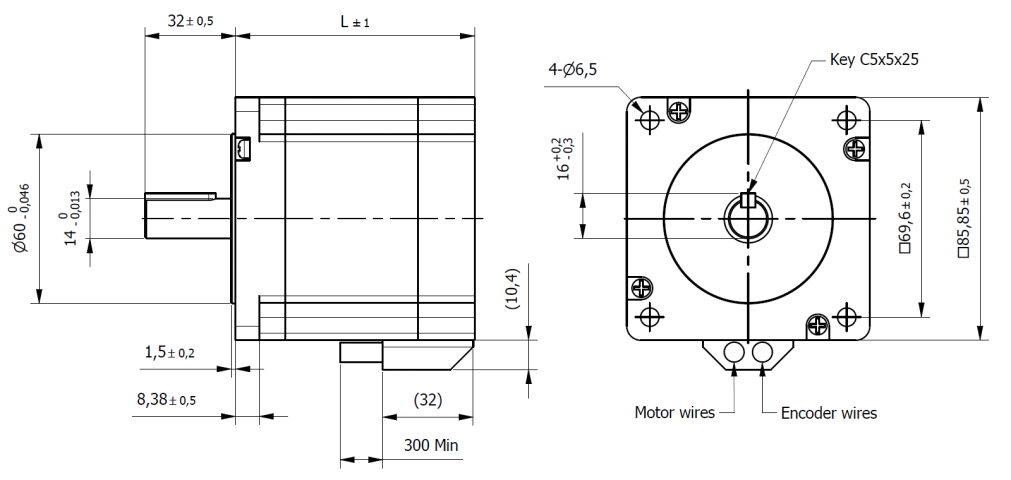

Technical Data Download Dimensions
Size86 mmNema34
Length (L)84.5 mmCurrent/Phase6 A
Holding Torque3.4 NmStep Angle1.8 °
Rated Voltage1.7 VdcResistance/Phase0.28 Ohm
Inductance/Phase1.7 mHRotor Inertia1000 gcm2
N° of Leads4 Weight1.7 Kg
EncoderOptical - Incremental 1000 CPR / 2 Channel Step Angle accuracy± 5 %
Insulation ClassB Protection ClassIP30
Operating Temperature- 20°C + 50°C Max. Temp. Rise (rated current, 2-phase on)80°C Max °C
Radial Play (450g load)0.02 Max mmAxial Play (450g load)0.08 Max mm
Max. Radial Force (20mm from flange)220 NMax. Axial Force60 N
Dielectric Strength (for 1min.)750 VACInsulation Resistance (min.500 VDC)100 Mohm
