90BLW

90BLW27-24V

90BLW27-24V

Product Code: 90BLW27-24V.000

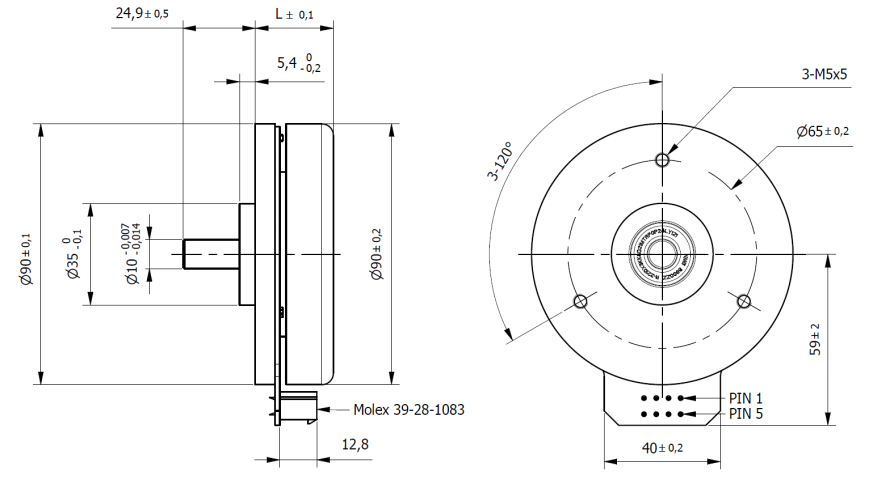

Technical Data Download Dimensions
Size90 mmLength (L)27 mm
Rated Voltage24 VdcRated Torque0.457 Nm
Rated Speed2720 rpmn° of Pole22
n° of Phase3 Max. Peak Torque1.8 Nm
Torque Constant0.067 Nm/ARated Current6.82 A
Max. Peak Current23 ANo-Load Current650 mA
Line to Line Resistance0.21 OhmLine to Line Inductance0.19 mH
Rotor Inertia3000 gcm2Weight0.6 Kg
Hall Effect Angle120 °Shaft run out0.05 mm
Insulation ClassB Protection ClassIP40
Radial Play (450g load)0.02 mmAxial Play (450g load)0.08 mm
Max. Radial Force (10mm from flange)110 NMax. Axial Force45 N
Dielectric Strength (for 1min.)500 VACInsulation Resistance (min.500 VDC)100 Mohm
