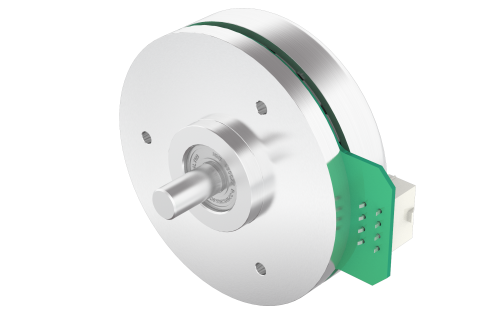

90BLW40 90BLW | Fulling

90BLW40

90BLW40

Size 90 mm  |  Length (L) 40 mm  |  Rated Voltage 48 Vdc  |  Rated Torque 0.964 Nm  |  Rated Speed 1670 rpm

Product Code: 90BLW40.000

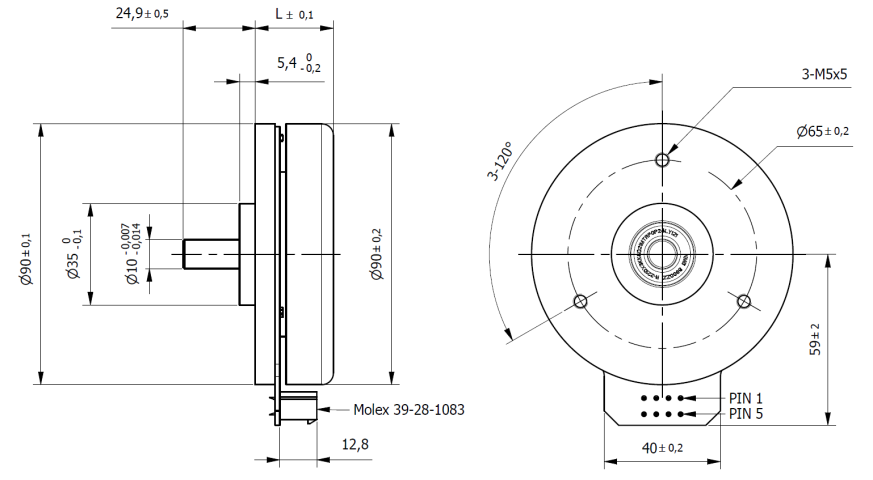

Technical Data Download Dimensions
Size90 mmLength (L)40 mm
Rated Voltage48 VdcRated Torque0.964 Nm
Rated Speed1670 rpmn° of Pole22
n° of Phase3 Max. Peak Torque3 Nm
Torque Constant0.24 Nm/ARated Current4 A
Max. Peak Current13 ANo-Load Current280 mA
Line to Line Resistance0.65 OhmLine to Line Inductance0.9 mH
Rotor Inertia5000 gcm2Weight1 Kg
Hall Effect Angle120 °Shaft run out0.05 mm
Insulation ClassB Protection ClassIP40
Radial Play (450g load)0.02 mmAxial Play (450g load)0.08 mm
Max. Radial Force (10mm from flange)110 NMax. Axial Force45 N
Dielectric Strength (for 1min.)500 VACInsulation Resistance (min.500 VDC)100 Mohm
