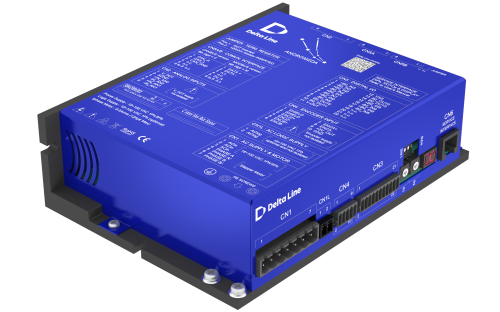

ANDROMEDA - SBA208 M001-S200

ANDROMEDA - SBA208 M001-S200

Interface Serial RS485 Modbus-RTU   |  Power Supply 18-100VAC or 24-140VDC   |  Phase Current up to 8.5 A rms  |  Peak Current 12 A peak  |  Open / Closed Loop Closed Loop

Product Code: SBA208M001-S200

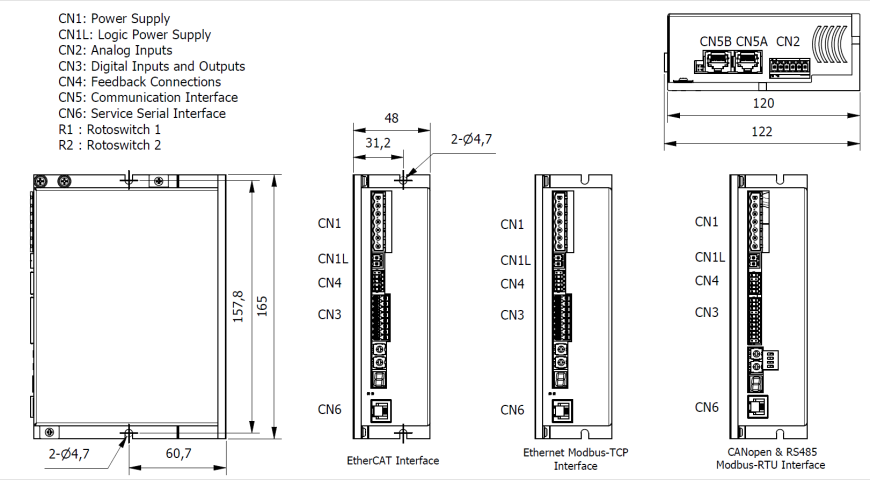

Technical Data Download Dimensions Software Accessories
InterfaceSerial RS485 Modbus-RTU Power Supply18-100VAC or 24-140VDC
Phase Current up to8.5 A rmsPeak Current12 A peak
Open / Closed LoopClosed Loop Logic Power Supply18-100VAC or 24-140VDC (optional)
Chopper frequency40 kHzWeight550 g
Operating modeStepless Control Technology (65536 emulated positions per turn) Protective functionsOver current, over/under voltage, overheating, short circuit
Protection ClassIP20 Pollution degree2
Operating Temperature+5 / +40°C Humidity5 - 85%
Digital Inputs6 opto-coupled Digital Outputs4 opto-coupled
Analog Inputs2 Encoder (standard)Incremental encoder (not isolated): 5V Differential (RS422) or 5V Single-Ended (TTL/CMOS)
Encoder (optional)Absolute Encoder Biss-C
