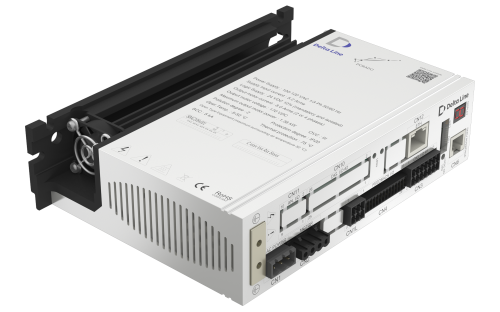

DORADO - SBAC208 T001-S200

Interface Ethernet Modbus TCP | Power Supply 85 - 120 VAC (monophase-triphase) | Phase Current up to 8 A rms | Peak Current 11.3 A peak | Open / Closed Loop Closed Loop

Product Code: SBAC208 T001-S200

Technical Data

Download

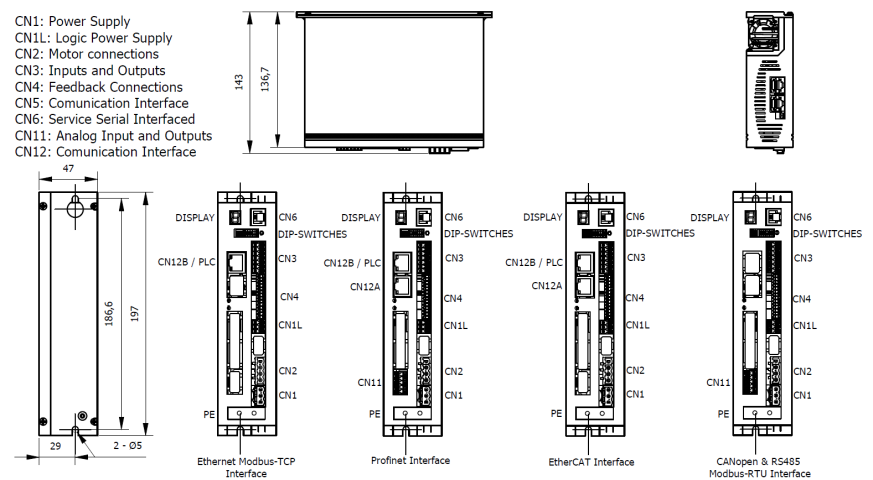

Dimensions

Software

Accessories

Interface	Ethernet Modbus TCP	Power Supply	85 - 120 VAC (monophase-triphase)
Phase Current up to	8 A rms	Peak Current	11.3 A peak
Open / Closed Loop	Closed Loop	Safety feature	Safe Torque Off (STO) SIL3/PLe
Logic Power Supply	24 VDC (mandatory)	Chopper frequency	40 kHz
Weight	550 g	Operating mode	Stepless Control Technology (65536 emulated positions per turn)
Protective functions	Over current, Over/Under Voltage, Overheating, Short circuit	Protection Class	IP20
Pollution degree	2	Operating Temperature	+5 / +40°C
Humidity	5 - 85%	Digital Inputs	4 opto-coupled
Digital Outputs	3 opto-coupled	Encoder (standard)	Incremental 5V differential (RS422) or 5V Single-Ended (TTL/CMOS) or Absolute 5V SSI or BiSS-C

Need help?
Talk to our experts

Contact us

Europe

Delta Line SA
Via Prè d’là, 1
CH-6814 Lamone, Switzerland
Phone: +41 (0)91 612 85 00
Fax: +41 (0)91 612 85 19
E-mail: info@fullingmotor.eu

China

Changzhou Fulling Motor Co.
Company Limited,
No. 69 Kunlun Road,
Xinbei District
Changzhou City, Jiangsu

Privacy & cookie Policy

Sitemap

		DL Space DL Space is the innovative visual programming environment for our drivers. This software does not require the learning of a text language but, through a graphic programming and guided windows, it allows the creation of multitasking programs exploiting all the functionalities of the DL drives with S200 firmware. The programs realized with DL Space allow to exploit all the low-level control modes of our programmable drives for both brushless and stepper motors, including multiple homing modes, the electric shaft, the electronic range and many other functions. Application debugging can be carried out quickly and easily thanks to the dedicated windows that include a virtual oscilloscope to monitor the actual motor movements.
		Software Manual
