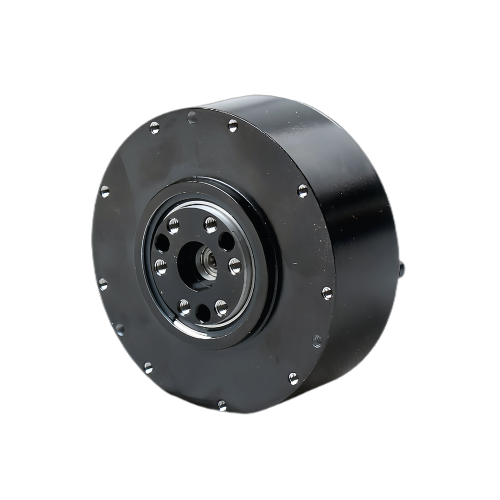

Dynamic Joint Motor - DJB 078

Home > Dynamic Joint Motor - DJB 078

Size 78 mm | Rated Power 226 W | Reduction Ratio 7,75:1 | Rated Speed 360 Rpm ±10% | Max. Peak Torque 17 Nm

Product Code: DJB 0780226DS1000CS402

Technical Data

Download

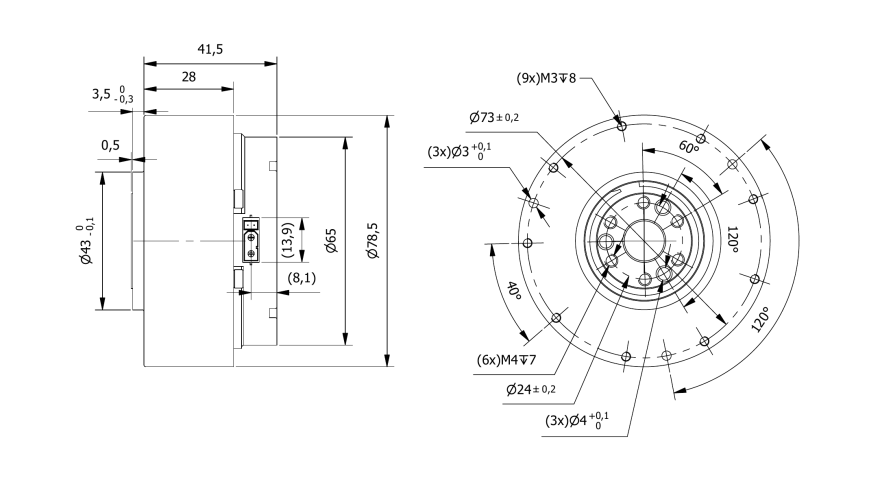

Dimensions

Software

Accessories

Size	78 mm	n° of Pole	28
Rated Voltage	48 Vdc	Operating Voltage	24-60 Vdc
Rated Power	226 W	Reduction Ratio	7,75:1
Running Direction	CW/CCW	Rated Speed	360 Rpm ±10%
Rated Torque	6 Nm	Max. Peak Torque	17 Nm
Torque Constant	1,22 Nm/A	Rated Current	7 A
Max. Peak Current	23 A	No-Load Current	0,5 Arms
Back EMF constant	96 V/kRPM	Resistance/Phase	0,55 Ω
Inductance/Phase	486 μH	Encoder 14bit	1
Length (L)	45,5 mm	Weight	405 Kg ±5%
Encoder Type - Standard	Magnetic Incremental 14bit on the Rotor, Magnetic Absolute Single turn 14bit after the Gearbox	Insulation Class	130 °C - B
Protection class	IP52	Operating Temperature	-20°C to +50°C °C
Humidity	5-85%	Storage Range	-30 to +70 °C
Max. Radial force	234 N	Max. Axial Force	36 N
Dielectric strength (for 1s 2mA)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating mode	Position, Speed, Torque	Protective functions	Over/Under voltage, Over current, Overheating, Short circuit
Debug & configuration	Can Converter	Interface	CANopen (DS402)
