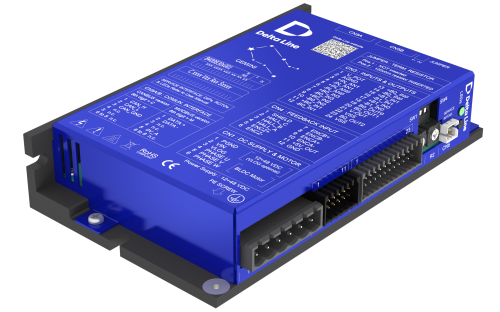

GEMINI - B400B30 M001-S200

GEMINI - B400B30 M001-S200

Product Code: B400B30M001-S200

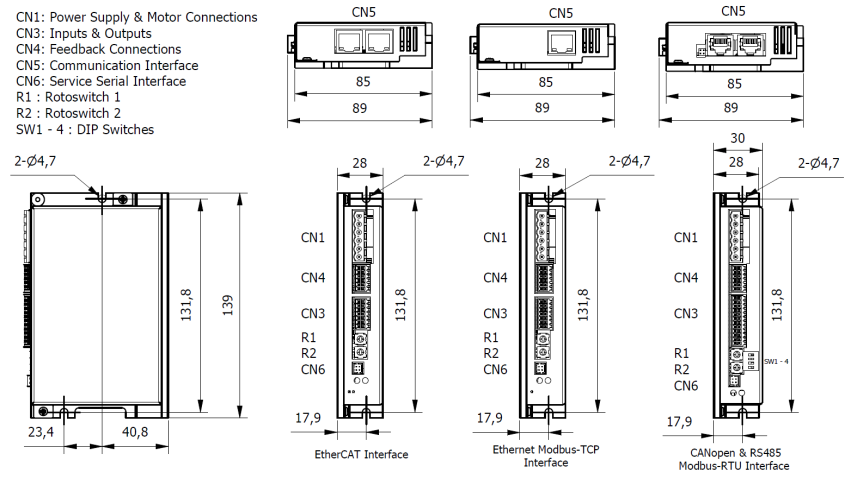

Technical Data Download Dimensions Software Accessories
InterfaceSerial RS485 Modbus-RTU Power Supply12 - 48 VDC
Phase Current up to10 A rmsPeak Current28 A peak
Motor Power up to400 WLogic Power Supply12 - 48 VDC
Chopper frequency40 kHzWeight380 g
Open / Closed LoopClosed Loop Operating modeProfile position/velocity/homing mode, Cyclic sync position/velocity/torque mode
Protective functionsOver current, over/under voltage, overheating, short circuit Protection ClassIP20
Pollution degree2 Operating Temperature+5 / +40°C
Humidity5 - 85% Digital Inputs6 (opto-coupled)
Digital Outputs3 (opto-coupled) Analog Inputs2 (not isolated)
Encoder (standard)Incremental encoder (not isolated): 5V Differential (RS422) or 5V Single-Ended (TTL/CMOS) Hall effect sensors5V Single-Ended (TTL/CMOS)
