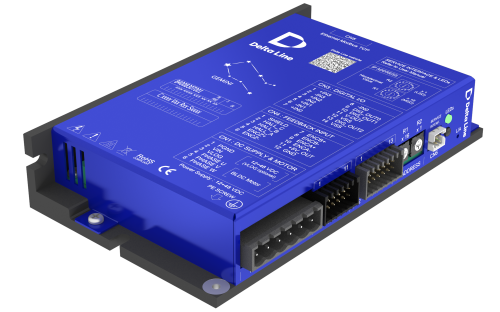

GEMINI - B400B30 T001-S200

Product Code: B400B30T001-S200

Technical Data

Download

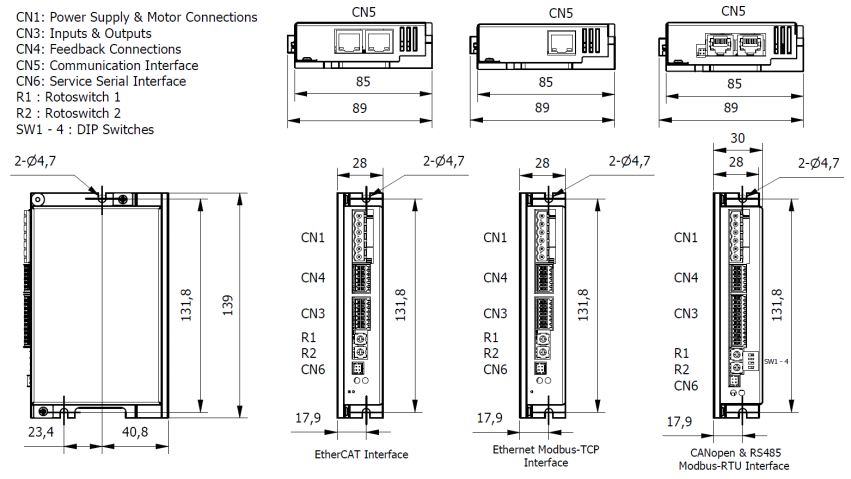

Dimensions

Software

Accessories

Interface	Ethernet ModBus TCP	Power Supply	12 - 48 VDC
Phase Current up to	10 A rms	Peak Current	28 A peak
Motor Power up to	400 W	Logic Power Supply	12 - 48 VDC
Chopper frequency	40 kHz	Weight	380 g
Open / Closed Loop	Closed Loop	Operating mode	Profile position/velocity/homing mode, Cyclic sync position/velocity/torque mode
Protective functions	Over current, over/under voltage, overheating, short circuit	Protection Class	IP20
Pollution degree	2	Operating Temperature	+5 / +40°C
Humidity	5 - 85%	Digital Inputs	4 (opto-coupled)
Digital Outputs	3 (opto-coupled)	Encoder (standard)	Incremental encoder (not isolated): 5V Differential (RS422) or 5V Single-Ended (TTL/CMOS)
Hall effect sensors	5V Single-Ended (TTL/CMOS)
