Home Products > Gearboxes > Planetary gearboxes > GP42 -N Low noise

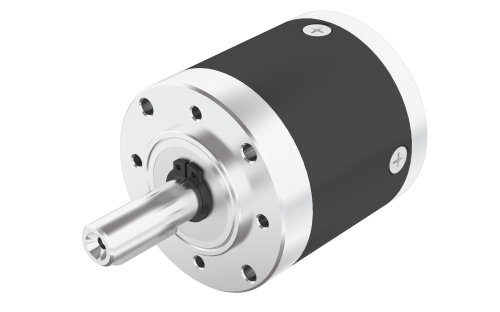

GP42-N1-7

Series GP | Size 42 mm | Length (L) 51 mm | Reduction Ratio 7 | Nominal Output Torque 0.79 Nm | Max. Input Speed 15300 rpm

Product Code: GP42-N1-7.000

Technical Data

Download

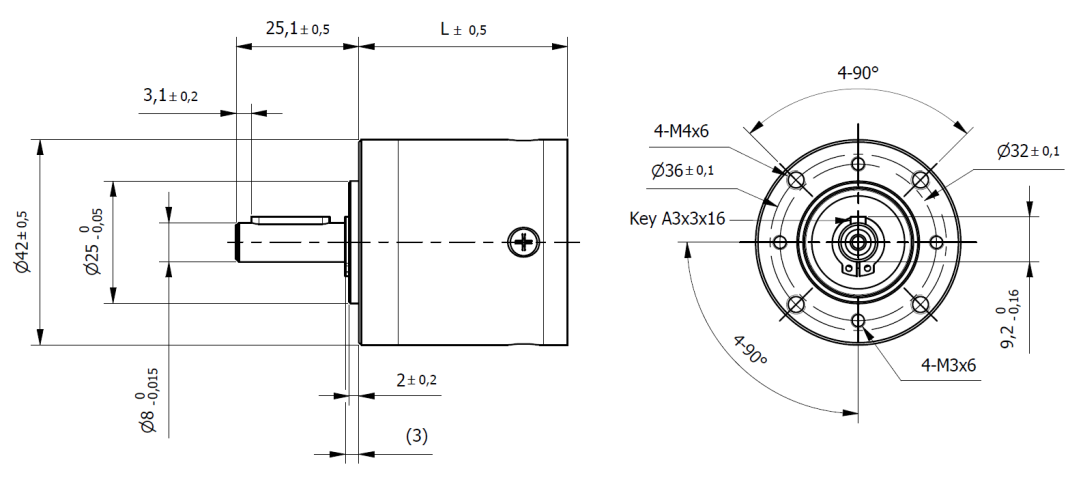

Dimensions

Series	GP	Size	42 mm
Length (L)	51 mm	Stages	1
Reduction Ratio	7	Nominal Output Torque	0.79 Nm
Max. Input Speed	15300 rpm	Max. Output Torque	2.37 Nm
Recommended Input Speed	3000 rpm	Efficiency	92 %
Moment of Inertia	(≤φ6.35) 0.21 kgmm²	Weight	300 g
Backlash at 2% nominal output torque	≤1.75 °	Press-Fit Max.	320 N
Noise level	≤50 dB	Operating Temperature	-15°C +50°C
Protection Class	IP54	Bearing output	Ball Bearings
