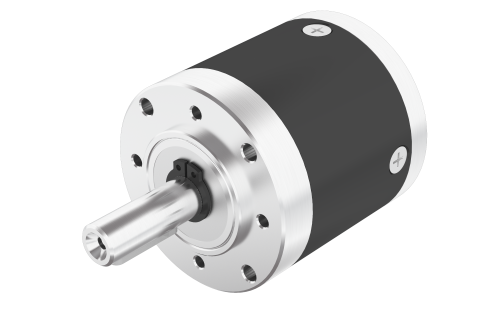

GP42-N2-24

Series GP | Size 42 mm | Length (L) 65 mm | Reduction Ratio 24 | Nominal Output Torque 4.9 Nm | Max. Input Speed 7650 rpm

Product Code: GP42-N2-24.000

Technical Data

Download

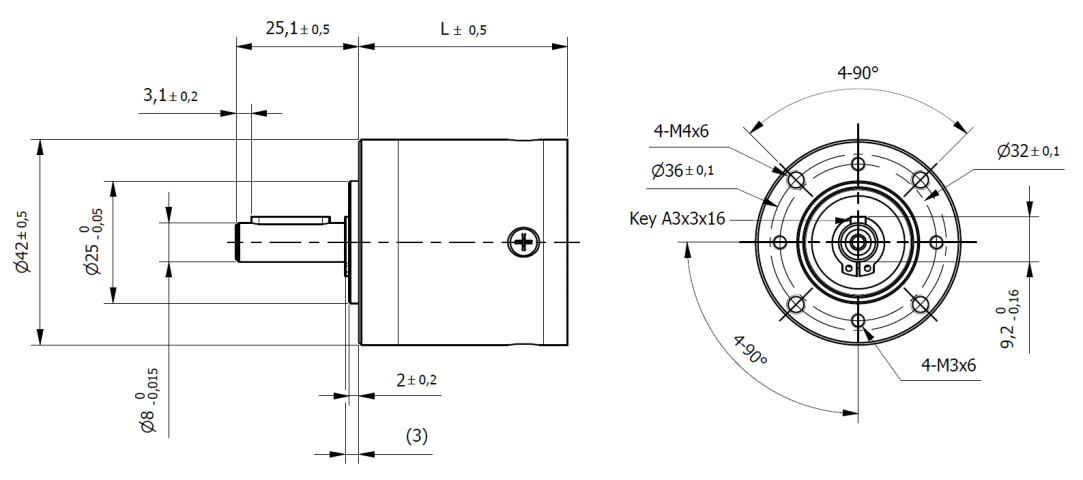

Dimensions

Series	GP	Size	42 mm
Length (L)	65 mm	Stages	2
Reduction Ratio	24	Nominal Output Torque	4.9 Nm
Max. Input Speed	7650 rpm	Max. Output Torque	9.8 Nm
Recommended Input Speed	3000 rpm	Efficiency	86 %
Moment of Inertia	(≤φ6.35) 0.55 kgmm²	Weight	400 g
Backlash at 2% nominal output torque	≤1.75 °	Press-Fit Max.	320 N
Noise level	≤50 dB	Operating Temperature	-15°C +50°C
Protection Class	IP54	Bearing output	Ball Bearings
