GP42 -S
Home   Products   >   Gearboxes   >   Planetary gearboxes   >   GP42 -S


Product Code: GP42-S2-45.82.000

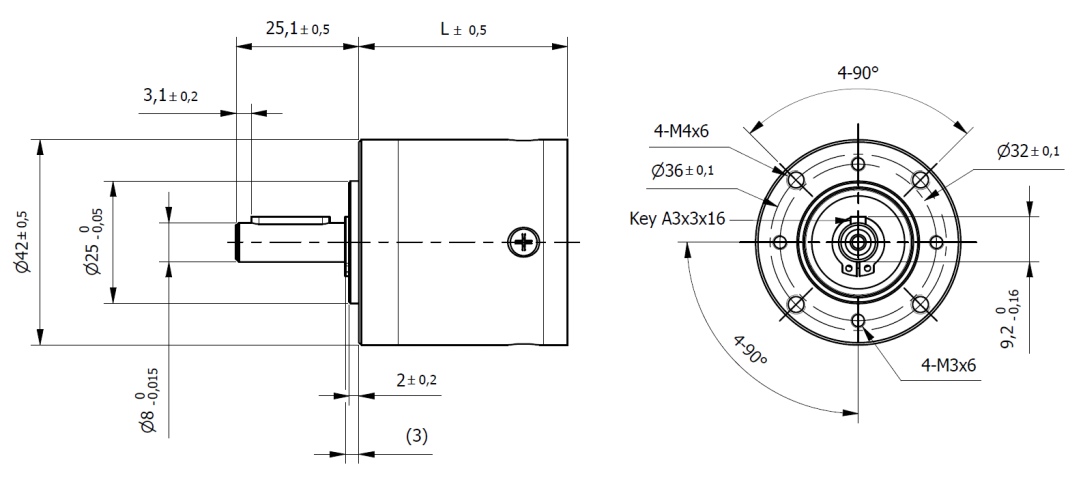

Technical Data Download Dimensions
SeriesGP Size42 mm
Length (L)56.6 mmStages2
Reduction Ratio45.82 Nominal Output Torque12.2 Nm
Max. Input Speed18000 rpmMax. Output Torque24.4 Nm
Recommended Input Speed3000 rpmEfficiency85 %
Moment of Inertia(≤φ6.35) 0.46 kgmm2Weight400 g
Backlash at 2% nominal output torque≤1 °Press-Fit Max.320 N
Noise level≤55 dBOperating Temperature-15°C +90°C
Protection ClassIP54 Bearing outputBall Bearings
