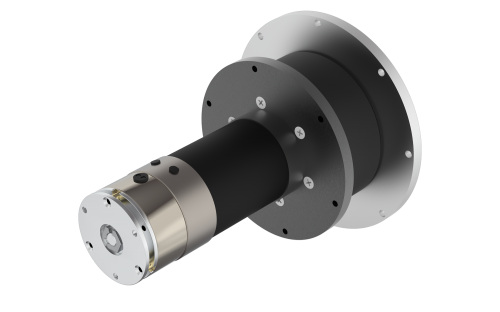

GPW56 + 57BL03

Max. load on wheel (radial load) 300 kg | Reduction Ratio 32.7 | Nominal Output Torque 9.17 Nm | Max. Output Torque 27.5 Nm | Recommended Input Speed 3500 rpm | Max. Input Speed 10919 rpm

Product Code: GPW56-57BL03

Technical Data

Download

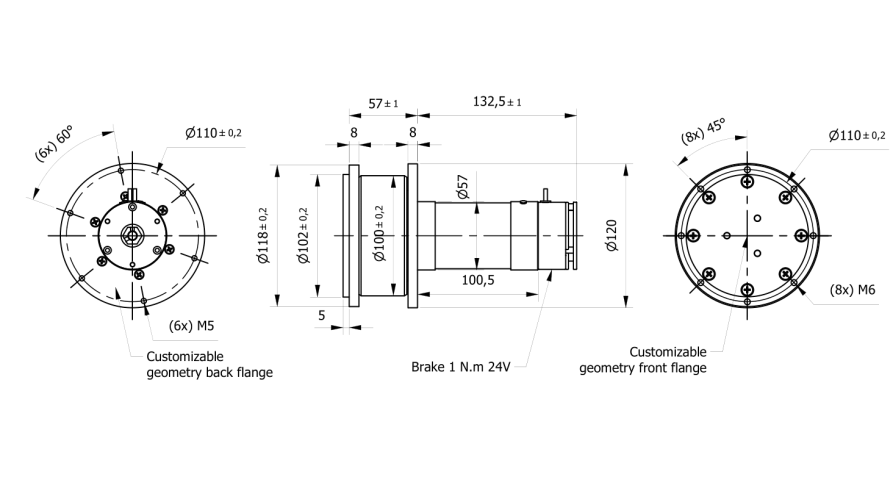

Dimensions

Max. load on wheel (radial load)	300 kg	Rated Voltage	24 Vdc
Rated Current	9.1 A	Stages	2
Reduction Ratio	32.7	Nominal Output Torque	9.17 Nm
Max. Output Torque	27.5 Nm	Recommended Input Speed	3500 rpm
Max. Input Speed	10919 rpm	Efficiency	85 %
Acc. @200kg, 160mm Ø wheel	1.4 m/s²	Acc. max. @200kg, 160mm Ø wheel	2.81 m/s²
Rated speed, 160 mm wheel	0.9 m/s	Weight	4.5 Kg
Backlash at 2% nominal output torque	≤30 °	Protection class	IP44 (IP54 on request)
Operating Temperature	-15°C +90°C
