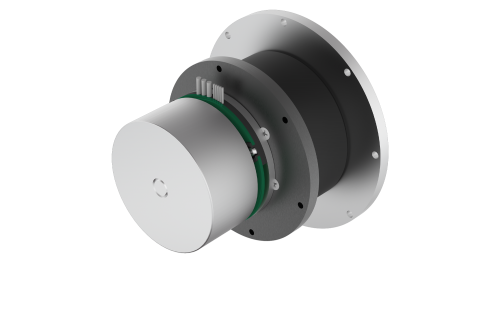

GPW56 + 60BLWA38

Max. load on wheel (radial load) 75 kg | Reduction Ratio 9.55 | Nominal Output Torque 4.55 Nm | Max. Output Torque 14.89 Nm | Recommended Input Speed 1060 rpm | Max. Input Speed 13000 rpm

Product Code: GPW56-60BLWA38

Technical Data

Download

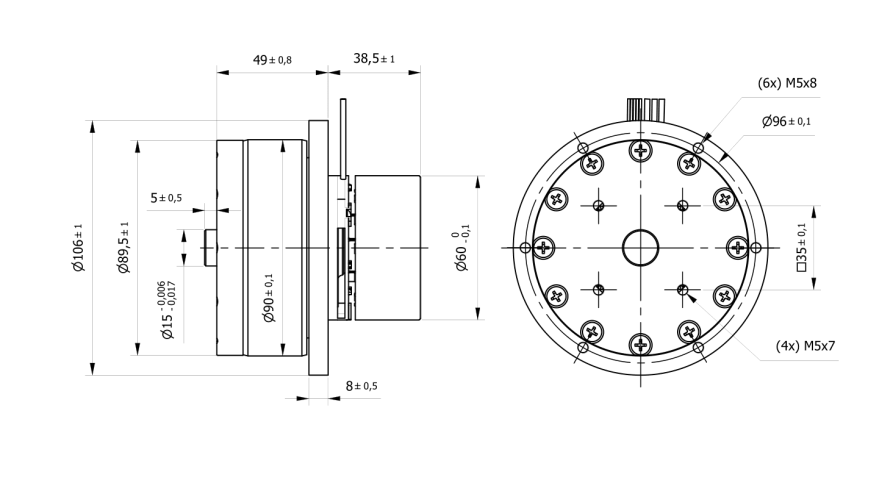

Dimensions

Max. load on wheel (radial load)	75 kg	Rated Voltage	48 Vdc
Rated Current	1.2 A	Stages	1
Reduction Ratio	9.55	Nominal Output Torque	4.55 Nm
Max. Output Torque	14.89 Nm	Recommended Input Speed	1060 rpm
Max. Input Speed	13000 rpm	Efficiency	92 %
Acc. @50kg, 160mm Ø wheel	1 m/s²	Acc. max. @50kg, 160mm Ø wheel	3.09 m/s²
Rated speed, 160 mm wheel	0.9 m/s	Weight	4.7 Kg
Backlash at 2% nominal output torque	≤30 °	Protection class	IP44 (optional IP54)
Operating Temperature	-15°C +90°C
