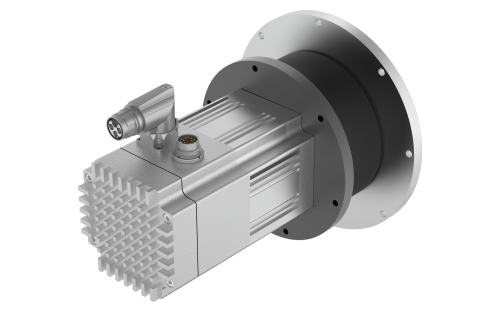

GPW56 + IBI80 362

Max. load on wheel (radial load) 75 kg | Reduction Ratio 9.55 | Nominal Output Torque 9.87 Nm | Max. Output Torque 29.07 Nm | Recommended Input Speed 3500 rpm | Max. Input Speed 13000 rpm

Product Code: GPW56-IBI80_362

Technical Data

Download

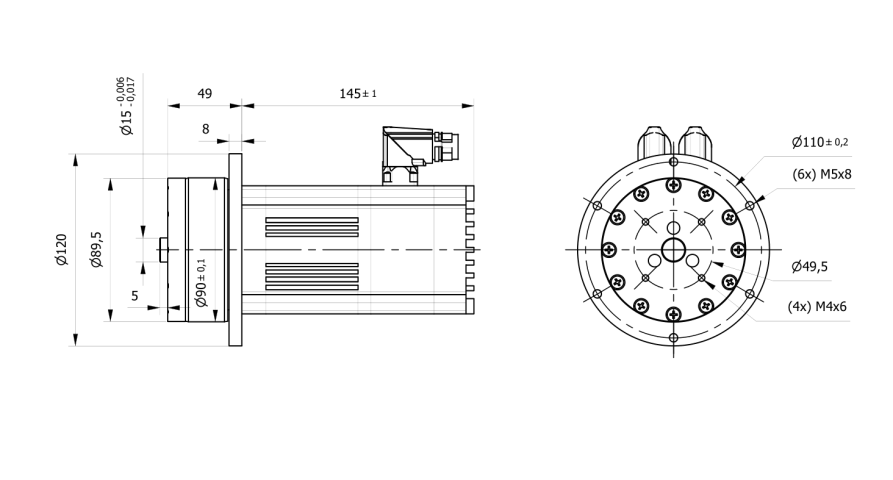

Dimensions

Max. load on wheel (radial load)	75 kg	Rated Voltage	40 Vdc
Rated Current	13 A	Stages	1
Reduction Ratio	9.55	Nominal Output Torque	9.87 Nm
Max. Output Torque	29.07 Nm	Recommended Input Speed	3500 rpm
Max. Input Speed	13000 rpm	Efficiency	92 %
Acc. @200kg, 160mm Ø wheel	0.4 m/s²	Acc. max. @200kg, 160mm Ø wheel	1.22 m/s²
Rated speed, 160 mm wheel	3.1 m/s	Weight	5.2 Kg
Backlash at 2% nominal output torque	≤30 °	Protection class	IP44 (optional 54)
Operating Temperature	-15°C +90°C
