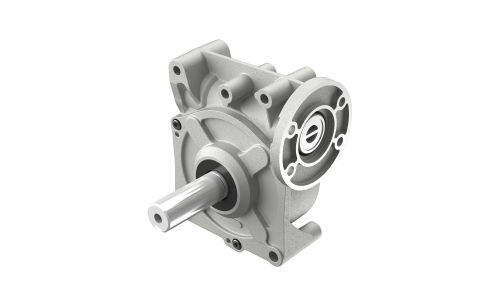

GW12-C-15-C

GW12-C-15-C

Gears material Composite   |  Size 73 mm  |  Reduction Ratio 15   |  Nominal Output Torque 20 Nm  |  Max. Output Torque 32 Nm  |  Efficiency 83 %

Product Code: GW12-C-15-C

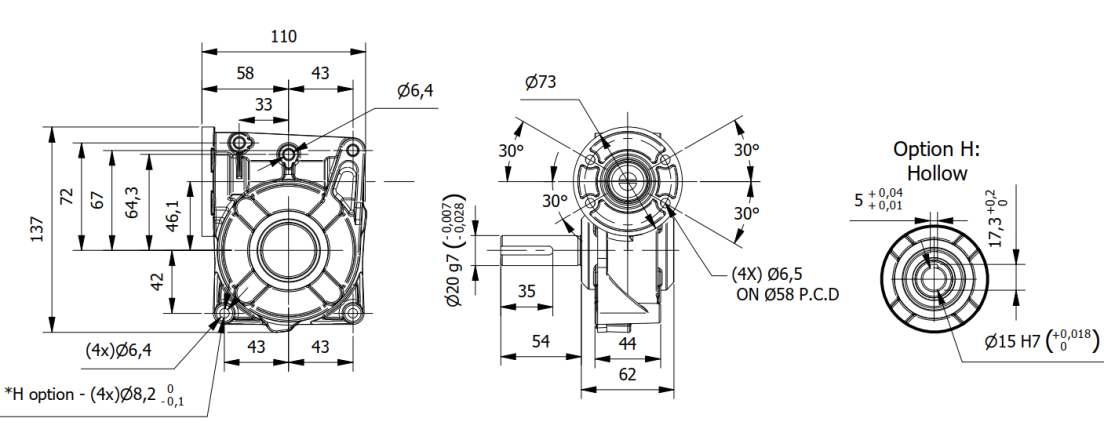

Technical Data Download Dimensions
Gears materialComposite Size73 mm
Length (L)62 mmStages1
Reduction Ratio15 Nominal Output Torque20 Nm
Max. Output Torque32 NmEfficiency83 %
Backlash10-25 arc.minMax. Axial load300 N
Max. Radial Load (12mm from flange)500 Weight1.1 Kg
