GW12-C-19-B GW12 | Fulling

Home   Products   >   Gearboxes   >   Worm & Wheel gearboxes   >   GW12

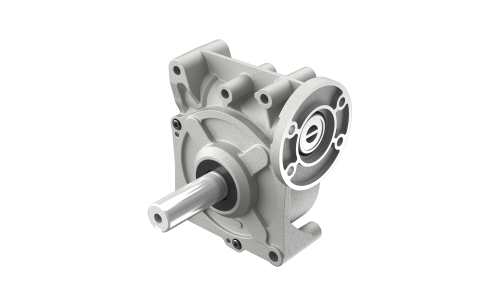

GW12-C-19-B

GW12-C-19-B

Gears material Bronze   |  Size 73 mm  |  Reduction Ratio 19   |  Nominal Output Torque 30 Nm  |  Max. Output Torque 48 Nm  |  Efficiency 73 %

Product Code: GW12-C-19-B

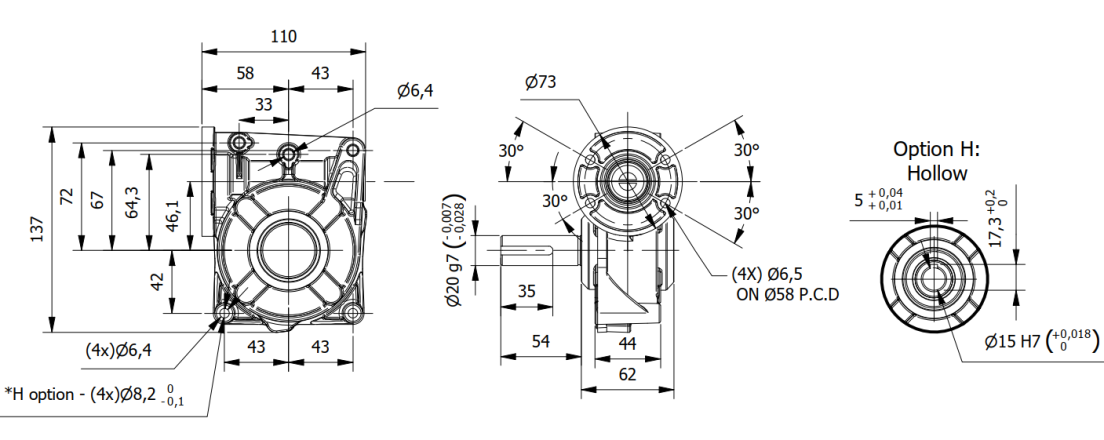

Technical Data Download Dimensions
Gears materialBronze Size73 mm
Length (L)62 mmStages1
Reduction Ratio19 Nominal Output Torque30 Nm
Max. Output Torque48 NmEfficiency73 %
Backlash10-25 arc.minMax. Axial load600 N
Max. Radial Load (12mm from flange)800 Weight1.5 Kg
