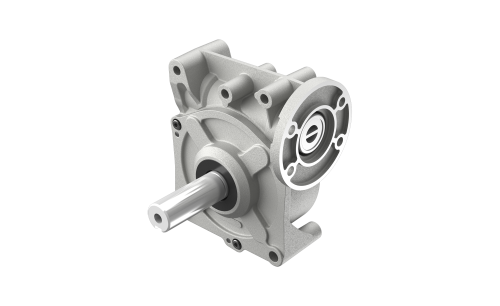

GW12-C-21-C

Gears material Composite | Size 73 mm | Reduction Ratio 21 | Nominal Output Torque 20 Nm | Max. Output Torque 32 Nm | Efficiency 78 %

Product Code: GW12-C-21-C

Technical Data

Download

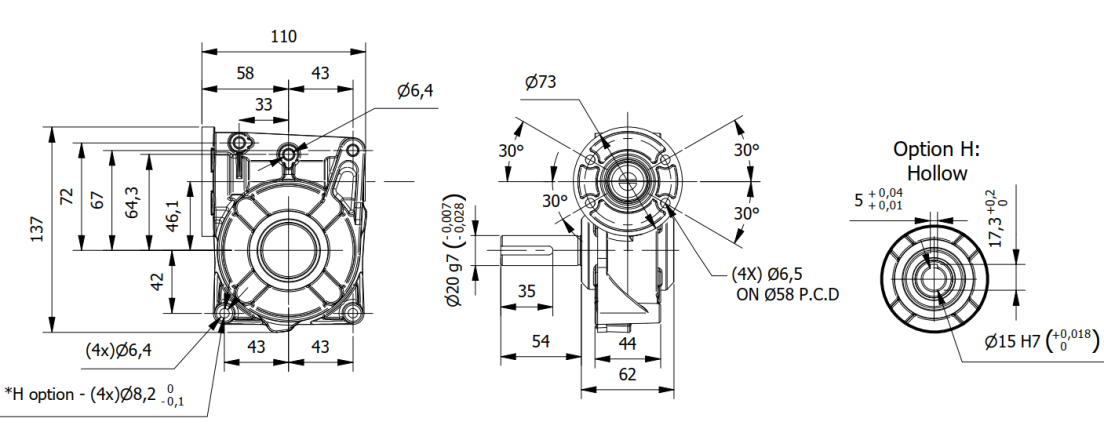

Dimensions

Gears material	Composite	Size	73 mm
Length (L)	62 mm	Stages	1
Reduction Ratio	21	Nominal Output Torque	20 Nm
Max. Output Torque	32 Nm	Efficiency	78 %
Backlash	10-25 arc.min	Max. Axial load	300 N
Max. Radial Load (12mm from flange)	500	Weight	1.1 Kg
