GW12-C-50-C GW12 | Fulling

Home   Products   >   Gearboxes   >   Worm & Wheel gearboxes   >   GW12
GW12-C-50-C

GW12-C-50-C

Gears material Composite   |  Size 73 mm  |  Reduction Ratio 50   |  Nominal Output Torque 20 Nm  |  Max. Output Torque 32 Nm  |  Efficiency 60 %

Product Code: GW12-C-50-C

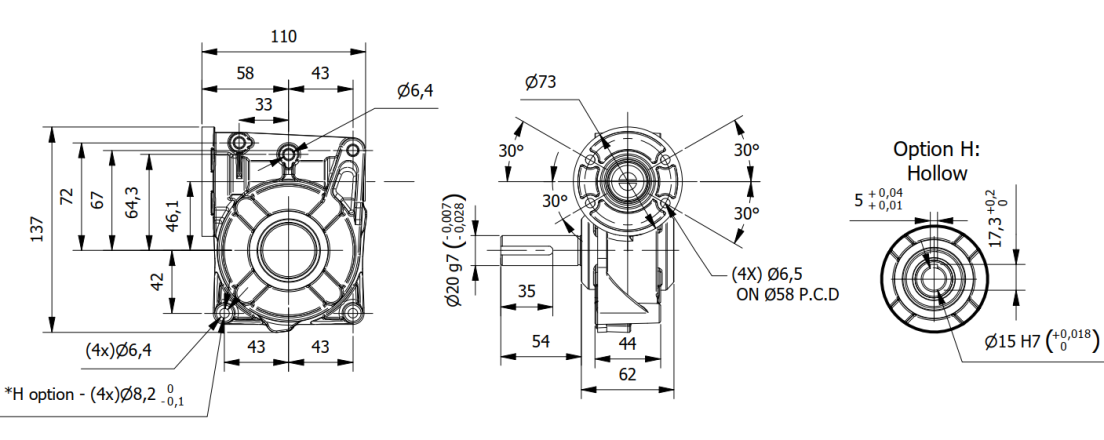

Technical Data Download Dimensions
Gears materialComposite Size73 mm
Length (L)62 mmStages1
Reduction Ratio50 Nominal Output Torque20 Nm
Max. Output Torque32 NmEfficiency60 %
Backlash10-25 arc.minMax. Axial load300 N
Max. Radial Load (12mm from flange)500 Weight1.1 Kg
