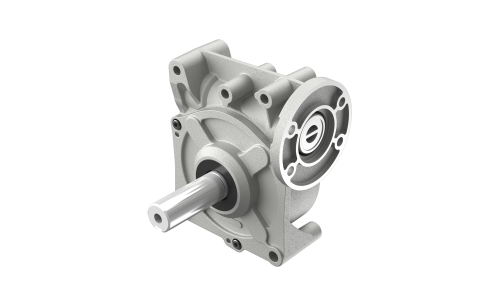

GW12-C-75-B

Gears material Bronze | Size 73 mm | Reduction Ratio 75 | Nominal Output Torque 27 Nm | Max. Output Torque 43 Nm | Efficiency 45 %

Product Code: GW12-C-75-B

Technical Data

Download

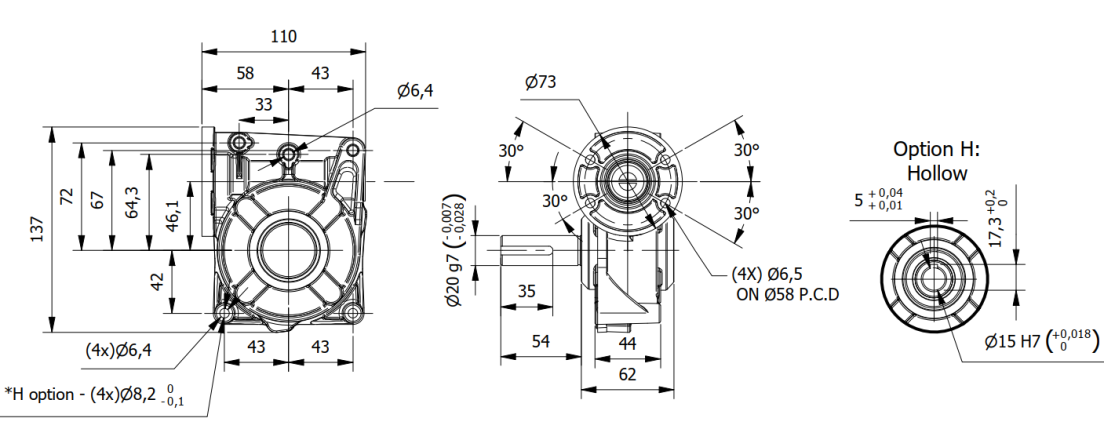

Dimensions

Gears material	Bronze	Size	73 mm
Length (L)	62 mm	Stages	1
Reduction Ratio	75	Nominal Output Torque	27 Nm
Max. Output Torque	43 Nm	Efficiency	45 %
Backlash	10-25 arc.min	Max. Axial load	600 N
Max. Radial Load (12mm from flange)	800	Weight	1.5 Kg
