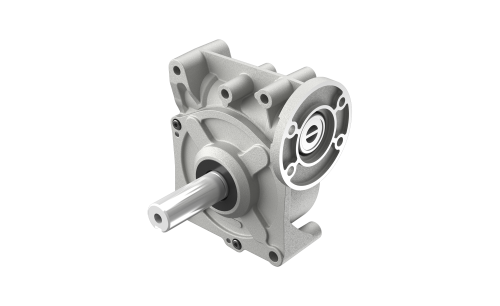

GW12-C-75-C

Gears material Composite | Size 73 mm | Reduction Ratio 75 | Nominal Output Torque 18 Nm | Max. Output Torque 29 Nm | Efficiency 50 %

Product Code: GW12-C-75-C

Technical Data

Download

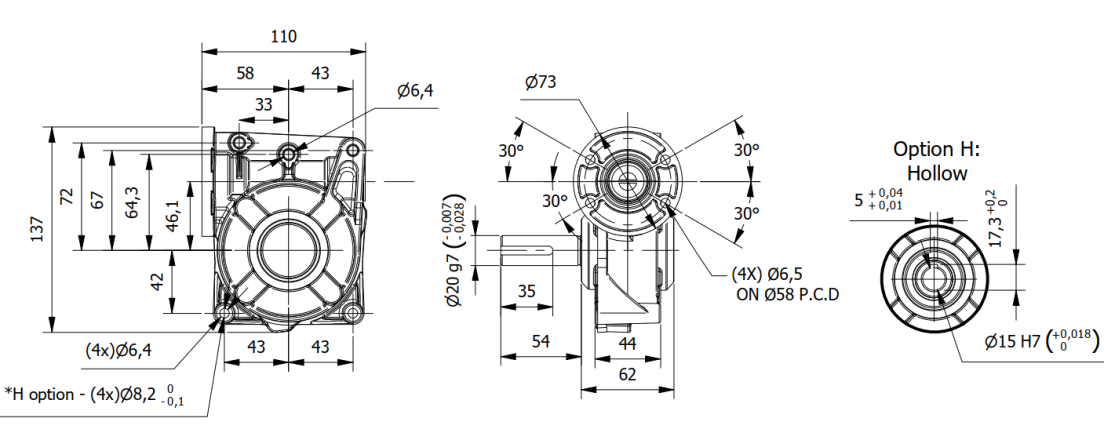

Dimensions

Gears material	Composite	Size	73 mm
Length (L)	62 mm	Stages	1
Reduction Ratio	75	Nominal Output Torque	18 Nm
Max. Output Torque	29 Nm	Efficiency	50 %
Backlash	10-25 arc.min	Max. Axial load	300 N
Max. Radial Load (12mm from flange)	500	Weight	1.1 Kg
